ANBON SEMICONDUCTOR (INT'L) LIMITEDTaiwan, China

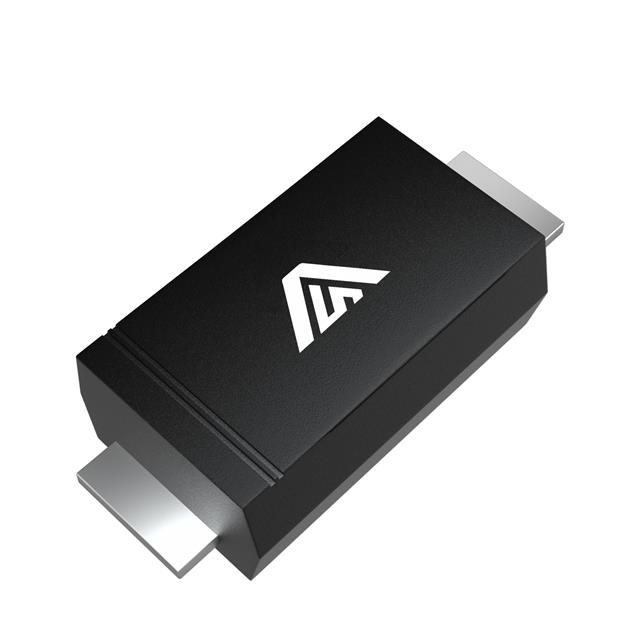

400MW SURFACE MOUNT SWITCHING DI
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage75 V
Average rectified current150 mA
Forward voltage1.25 VMax · 150 mA
TypeStandardSmall Signal =< 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 150mA |
| Current - Reverse Leakage @ Vr | 2.5 µA @ 75 V |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | SOD-123 |
| Supplier Device Package | SOD-123 |
| Other | |
| Base Product Number | 1N4148 |
| Capacitance @ Vr, F | 1.5pF @ 0V, 1MHz |
| Mfr | ANBON SEMICONDUCTOR (INT'L) LIMITED |
| Product Status | Active |
| Reverse Recovery Time (trr) | 4 ns |
| Series | - |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Standard |
