STMicroelectronicsSwitzerland

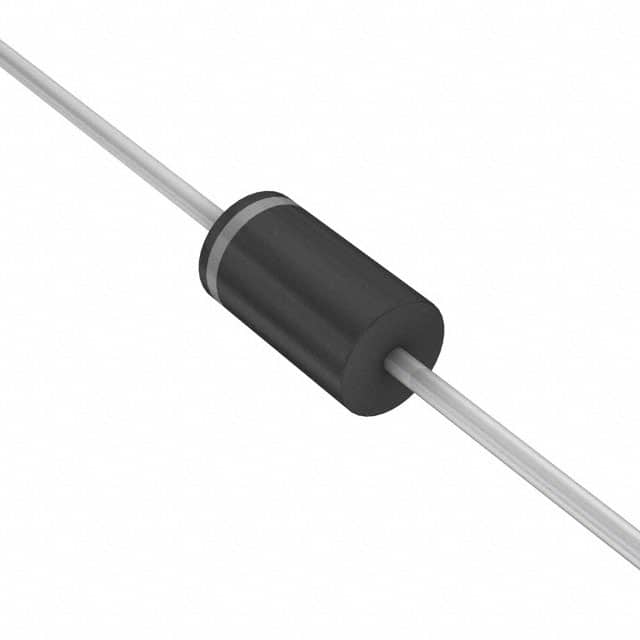

DIODE SCHOTTKY 40V 3A DO201AD
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage40 V
Average rectified current3 A
Forward voltage525 mVMax · 3 A
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 3A |
| Current - Reverse Leakage @ Vr | 2 mA @ 40 V |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 525 mV @ 3 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | 150°C(Max) |
| Package | Cut Tape (CT); Tape & Box (TB) |
| Package / Case | DO-201AD, Axial |
| Supplier Device Package | DO-201AD |
| Other | |
| Base Product Number | 1N5822 |
| Capacitance @ Vr, F | - |
| Diode Type | Schottky |
| Mfr | STMicroelectronics |
| Product Status | Active |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
Documents
No documents are linked to this part yet.
