1S1D-1A2RS
KüblerGermany

1S1D-1A2RS

Active

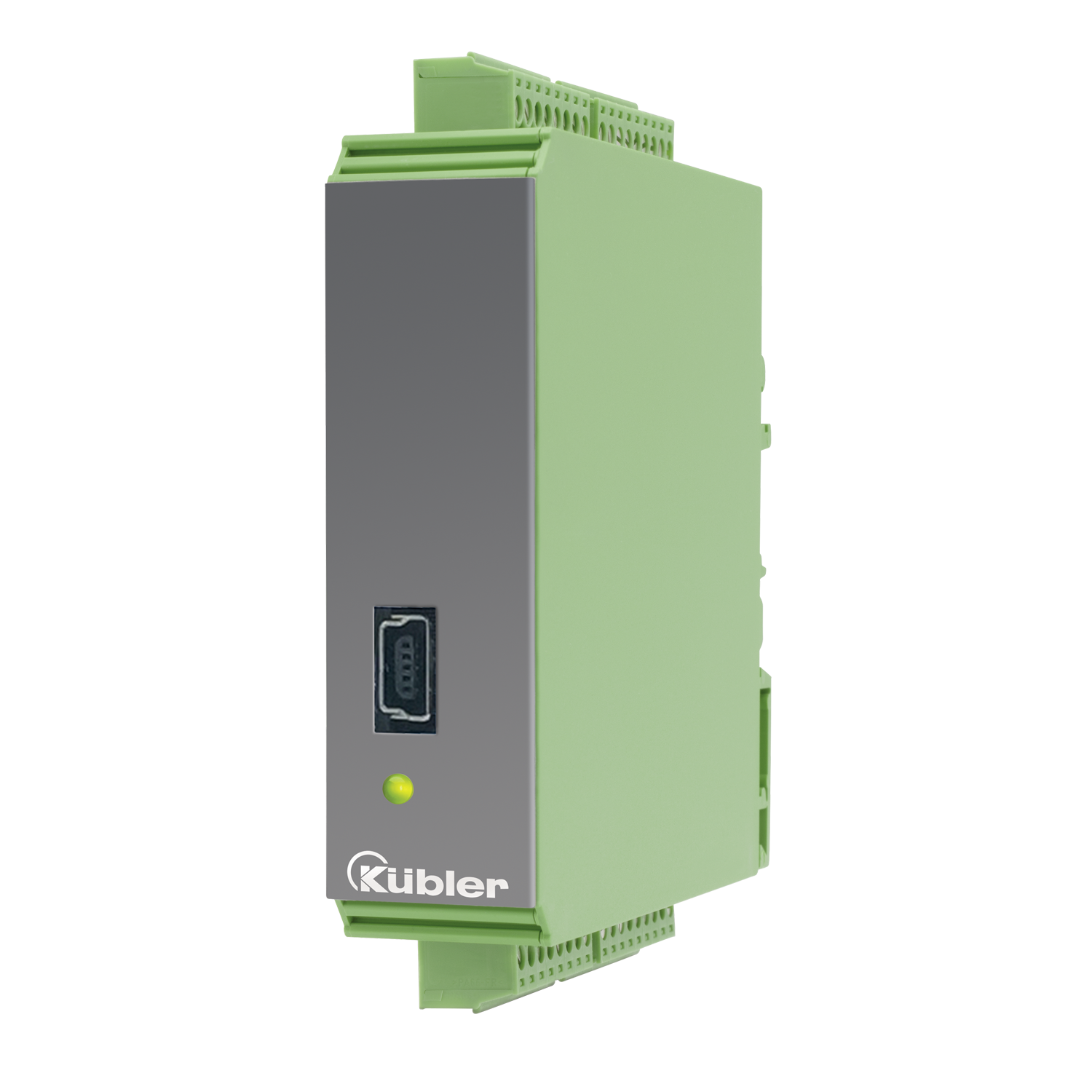

Universal signal converter for analog output signals. Input: SSI binary, SSI gray

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Power
Power supply18...30 V DC
Environment and package
Dimension23 mm x 102 mm x 102 mm
Working temperature0 °C ... 45 °C
Other
Connection typesScrew terminals
Input interfaces4 Last, 3 Signal HTL TTL / RS422 SSI, binär SSI, gray Printer CR/LF
OS10 - Standard software PDF ∼ 5,4 MB | 09.2025DE EN
Output interfacesAnalog ±10 V Analog 0...10 V Analog 0...20 mA Analog 4–20 mA RS232 RS485
Protection levelIP20
SK 1S1D-1A2RS PDF ∼ 2,7 MB | 09.2025DE EN FR
SK 1S1D-1A2RS PDF ∼ 745,8 KB | 09.2025DE EN FR
