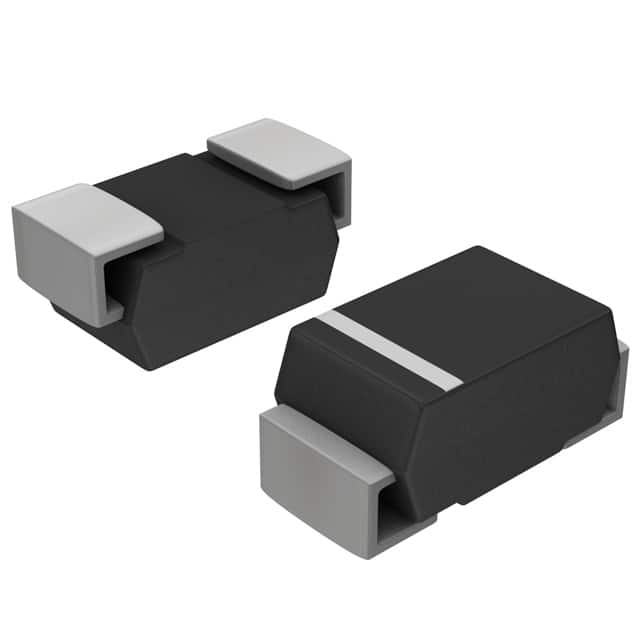

DIODE ZENER 24V 1.5W SMA
All alternatives
View full reportTechnical parameters
Key specs
Zener voltage24 V
Tolerance5 %
Power1.5 WMax
Zener impedance19 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 500 nA @ 18.2 V |
| Power - Max | 1.5 W |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA |
| Voltage - Zener (Nom) (Vz) | 24 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 19 Ohms |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C |
| Package | Cut Tape (CT); Digi-Reel® |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Other | |
| Base Product Number | 1SMA5934 |
| Mfr | onsemi |
| Product Status | Obsolete |
| Series | - |
| Tolerance | ±5% |
