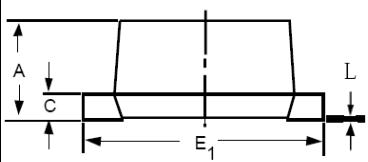

SOD-723

SOD-723

LITEONTaiwan, China

1SS400G

Switching DiodesSOD-723

DIODE SWITCHING 80V 100MA SOD-723

LITEON 1SS400G is a SOD-723 package surface mount fast switching diode with 80V reverse voltage, 100mA average rectified current, low reverse leakage, and high switching speed.Checked against the datasheet

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Reverse voltage80 V
Average rectified current100 mA
Forward voltage1.2 VMax · $I_F = 100mA$
TypeSwitching

Datasheet-verified parameters

17 items
ParameterValue and test conditionsSource
DC Blocking Voltage80 V
Average Rectified Output Current100 mA
Maximum Forward Voltage1.2 V @ $I_F = 100mA$
Diode TypeFast Switching Diode
PackageSOD-723
Junction Temperature125 °C
RoHS ComplianceLead free in RoHS 2002/95/EC compliant
Halogen FreeNo Br. Sb. CI
Non-Repetitive Peak Reverse Voltage90 V
Forward Continuous Current225 mA
Peak Forward Surge Current0.5 A @t=1s
Storage Temperature Range-55~+125 °C
Maximum DC Reverse Current0.1 uA @ $V_R = 80V$
Typical Diode Capacitance3 pF @ $V_R = 0V, f=1MHz$
Reverse Recovery time4 ns @ $V_R = 6V, I_R = I_F = 10mA, R_L = 100Ω$
Flammability ClassificationUL 94V-0
Moisture Sensitivity LevelLevel 1 per J-STD-020D
All parameters (9)ExpandCollapse
Power
Average Rectified Output Current100 mA
DC Blocking Voltage80 V
Forward Continuous Current225 mA
Maximum DC Reverse Current at Rated DC Blocking Voltage0.1 uA
Maximum Forward Voltage1.2 V
Environment and package
CaseSOD-723
Junction Temperature125 °C
Storage Temperature Range-55~+125 °C
Other
Reverse Recovery time4 ns

Pinout and package

PackageSOD-723

PinNameFunctionSource
1Anode
2Cathode
