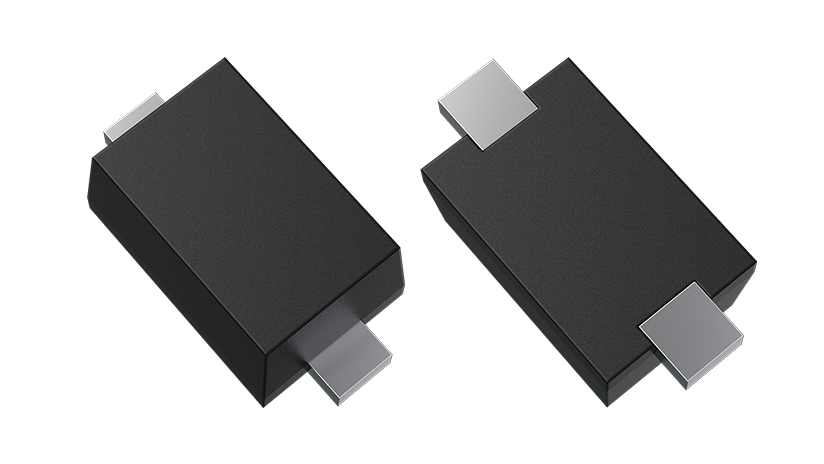

The 1SV279 is a Toshiba Diodes product. 5.5 pF/14 pF Variable Capacitance Diodes, SOD-523(ESC) VHF/UHF VCO｜ Find data sheet and product information from the product details page.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| [Abs] Reverse Voltage (V R) | 15 V |
| Environment and package | |
| [Desc] RoHS Compatible Product(s) (#) | Available |
| [Elec] Capacitance (case 1) (Max) (C T (upper_side)) | 16 pF |
| [Elec] Capacitance (case 1) (Min) (C T (upper_side)) | 14 pF |
| [Elec] Capacitance (case 2) (Max) (C T (lower_side)) | 6.5 pF |
| [Elec] Capacitance (case 2) (Min) (C T (lower_side)) | 5.5 pF |
| Other | |
| [Desc] Application Scope | VHF/UHF VCO |
| [Desc] Number of Circuits | 1 |
| [Elec] Capacitance Ratio (Typ.) (CT(1)/CT(2)) | 2.5 - |
| [Elec] Series Resistance (Typ.) (r S) | 0.2 Ω |
