WeidmüllerGermany

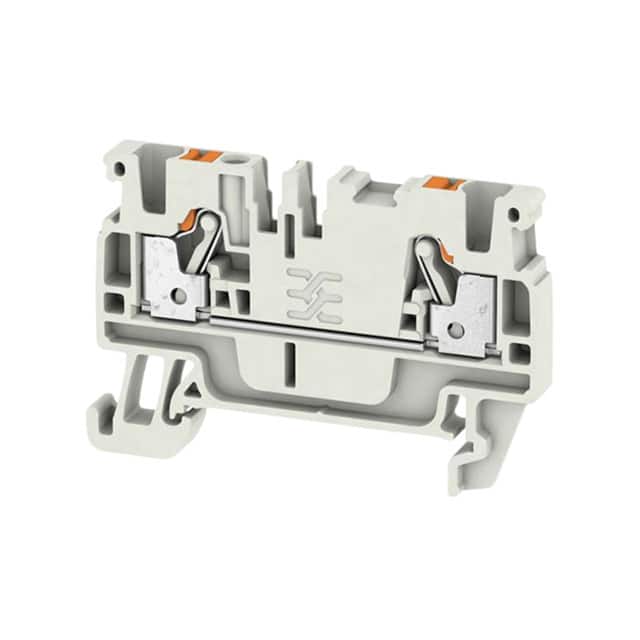

FEED-THROUGH TERMINAL BLOCK, PUS
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - IEC | 24 A |
| Current - UL | 20 A |
| Voltage - IEC | 800V |
| Voltage - UL | 600V |
| Environment and package | |
| Package | Box |
| Other | |
| Color | Gray |
| Disconnect Type | - |
| Features | - |
| Fuse Type | - |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Thermoplastic, Wemid |
| Mfr | Weidmüller |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Product Status | Active |
| Series | A |
| Stripping Length | 10mm |
| Terminal - Width | 5.1mm |
| Termination Style | Push In |
| Type | Feed Through |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 0.5-2.5mm² |
Documents
No documents are linked to this part yet.
