Key specs
CircuitSPST
Current rating50 mAMax
| Power | |
|---|---|
| Current Rating (Amps) | 50mA |
| Voltage Rating | 24VDC |
| Environment and package | |
| Height Above Board | 0.334" (8.48mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~85°C |
| Package | Tube |
| Other | |
| Actuator Level | Raised |
| Actuator Type | Slide (Standard) |
| Body Material | Plastic |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | - |
| Electrical Life | 10,000 Cycles |
| Features | - |

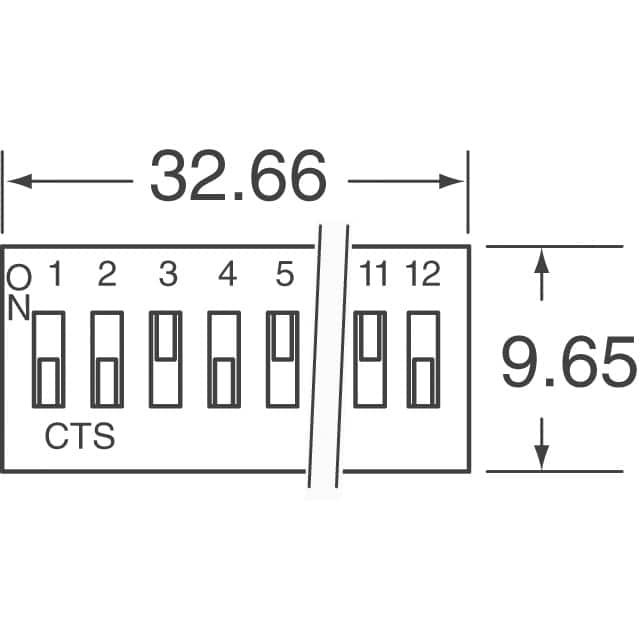

| Length | 1.286" (32.66mm) |
| Mechanical Life | - |
| Mfr | CTS Electrocomponents |
| Number of Positions | 12 |
| Pitch | 0.100" (2.54mm), Full |
| Product Status | Active |
| Series | 206 |
| Termination Style | PC Pin |
| Washable | No |
