MDE Semiconductor IncUnited States

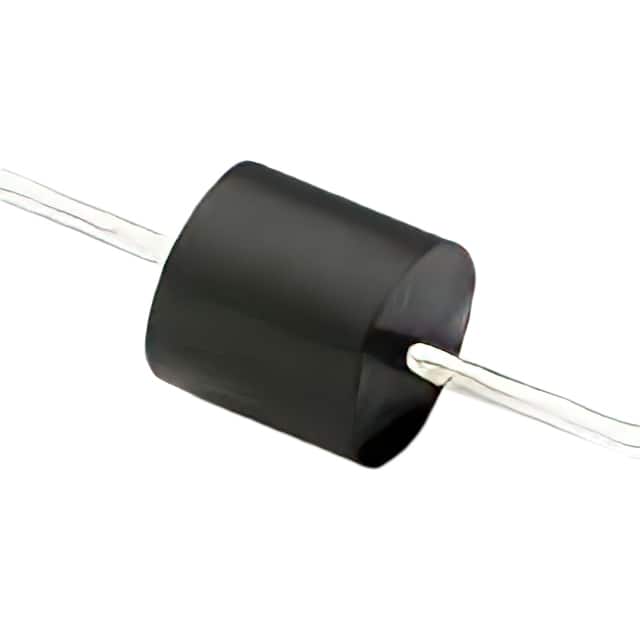

TVS DIODE UP 52VRWM 85.8VC
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage52 V
Breakdown voltage58.1 V
Clamping voltage85.8 VMax
Peak pulse power20 kW
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 235.4A |
| Power Line Protection | No |
| Power - Peak Pulse | 20000W (20kW) |
| Voltage - Breakdown (Min) | 58.1V |
| Voltage - Clamping (Max) @ Ipp | 85.8V |
| Voltage - Reverse Standoff (Typ) | 52V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Bulk |
| Package / Case | P600, Axial |
| Supplier Device Package | P600 |
| Other | |
| Applications | General Purpose |
| Mfr | MDE Semiconductor Inc |
| Product Status | Active |
| Series | 20KPA |
| Type | Zener |
