Pololu CorporationUnited States

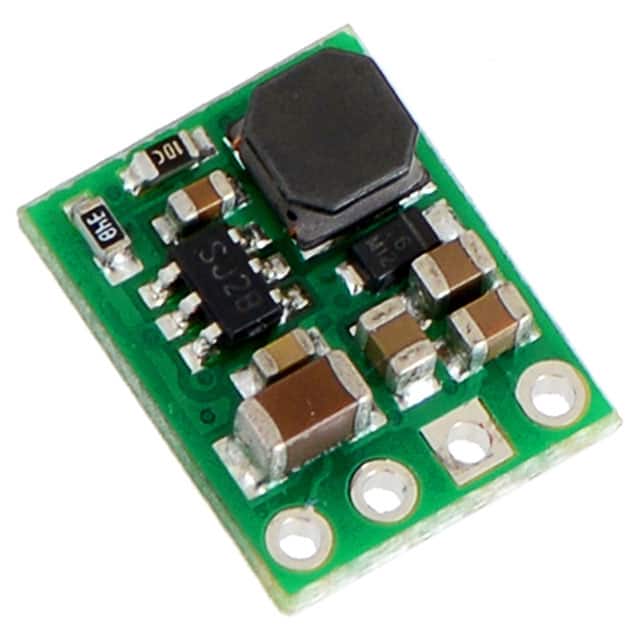

DC DC CONVERTER 12V 3.6W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage14 ~ 42 V
Output voltage12 V
Output current300 mAMax
Power3.6 WMax
IsolationNon-isolated
| Power | |
|---|---|
| Current - Output (Max) | 300mA |
| Power (Watts) | 3.6 W |
| Voltage - Input (Max) | 42V |
| Voltage - Input (Min) | 14V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | - |
| Package / Case | 4-SIP Module |
| Size / Dimension | 0.50" L x 0.40" W x 0.10" H (12.7mm x 10.2mm x 2.5mm) |
| Supplier Device Package | - |
| Other | |
| Applications | - |
| Approval Agency | - |
| Control Features | Enable, Active High |
| Efficiency | 90% |
| Features | - |
| Mfr | Pololu Corporation |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | D24V3 |
| Type | Non-Isolated PoL Module |
