Phoenix ContactGermany

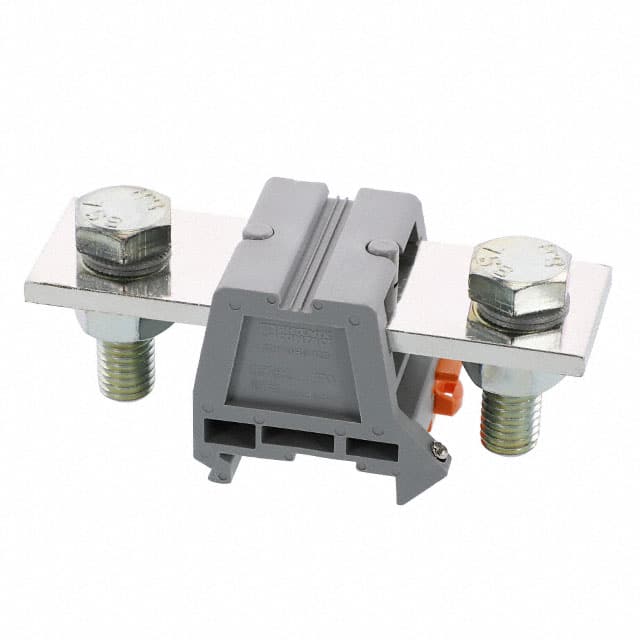

CONN TERM BLK FEED THRU 300 MCM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - IEC | 309 A |
| Current - UL | 285 A |
| Voltage - IEC | 1000V |
| Voltage - UL | 600V |
| Environment and package | |
| Package | Bulk |
| Other | |
| Color | Gray |
| Disconnect Type | - |
| Features | - |
| Fuse Type | - |
| Material Flammability Rating | UL94 HB |
| Material - Insulation | Polyamide (PA), Nylon, Glass Filled |
| Mfr | Phoenix Contact |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Product Status | Obsolete |
| Series | CLIPLINE UHV |
| Stripping Length | 34mm |
| Terminal - Width | 46.0mm |
| Termination Style | Bolt and Nut |
| Type | Feed Through |
| Wire Gauge or Range - AWG | 300MCM (kcmil)-2 AWG |
| Wire Gauge or Range - mm² | 50-150mm² |
Documents
No documents are linked to this part yet.
