TE ConnectivitySwitzerland

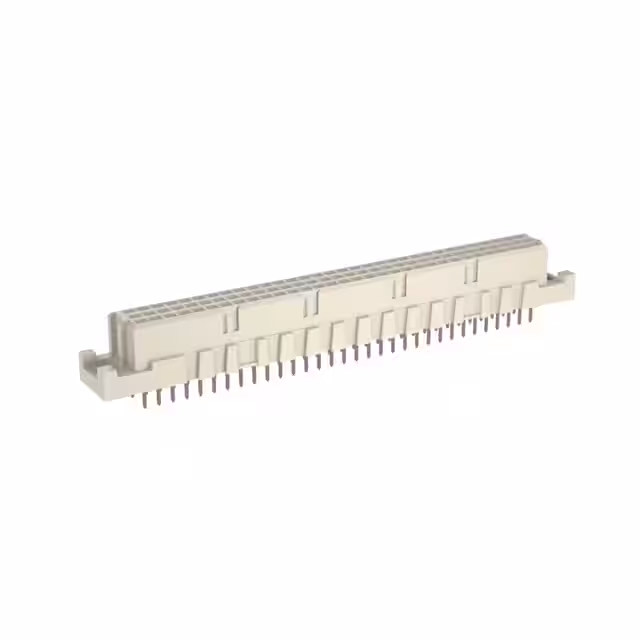

DIN C 64POS F SLDR 4.0MM CL2
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~125°C |
| Package | Tray |
| Other | |
| Base Product Number | - |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Features | - |
| Level, Class | 2 |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled |
| Mfr | TE Connectivity Erni |
| Number of Positions | 64 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch | 0.100" (2.54mm) |
| Product Status | Active |
| Series | DIN |
| Style | C |
| Termination | Solder |
Documents
No documents are linked to this part yet.
