2244C

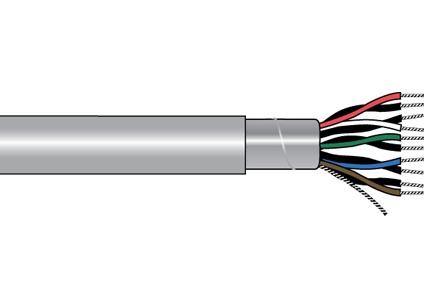

ActiveAlpha Wire 18 AWG, 4 Pair Communication Cable provides precise signal transmission for computer and control applications
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 300 V RMS |
| AC and DC characteristics | |
| 4) Characteristic Impedance | 62 Ω |
| Environment and package | |
| 1) Temperature Range | -20 to 80°C |
| Other | |
| (1) Color Code | Alpha Wire Color Code A |
| 1) Component 1 | 4 x 1 PAIR |
| (1) Twists | 5.3 Twists/foot (min.) |
| 2) Bend Radius | 10X Cable Diameter |
| 2) Cable Assembly | 4 Components Cabled |
| 2) Mutual Capacitance | 34 pF/ft @1 kHz, Nominal |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more detail. |
| 3) CE | EU Low Voltage Directive 2014/35/EU |
| 3) Ground Capacitance | 61 pF/ft @1 kHz, Nominal |
| 3) Pull Tension | 108 lbs. (max.) |
| 3) Shield | Alum/Mylar Tape, 25% Overlap (min.) |
| 5) Inductance | 0.18 μH/ft, Nominal |
| 6) Conductor DCR | 7.1 Ω/1000ft @20°C, Nominal |
| 7) OA Shield DCR | 7.7 Ω/1000ft @20°C, Nominal |
| 80°C / 300 V RMS | 75°C |
| a) 1000 FT | 18 x 14.25 x 8 Continuous Length |
| a) Color(s) | SLATE |
| a) Foil Direction | Foil Facing Out |
| a) Twists | 2.7 Twists/foot (min.) |
| AWM/STYLE 2464 | CM |
| b) 500 FT | 18 x 9 x 8 Continuous Length |
| b) Drain Wire | 20 (10/30) AWG Tinned Copper |
| b) Orientation | Components to be arranged from INSIDE LAYER-to-OUTSIDE LAYER |
| b) Print | ALPHA WIRE-* P/N 2244C 4PR 18 AWG SHIELDED 75C (UL) TYPE CM OR AWM 2464 OR C(UL) 75C TYPE CMG FT4 CE ROHS * = Factory Code Note: Product may have c(UL) or CSA markings depending upon plant of manufacture. |
| c) 100 FT | 12 x 5.94 x 5 Continuous Length |
| CM | 75°C |
| Color | BLACK-RED |
| c) Pair | 2/Cond Cabled Together |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
| Pair | 1 |
