TE ConnectivitySwitzerland

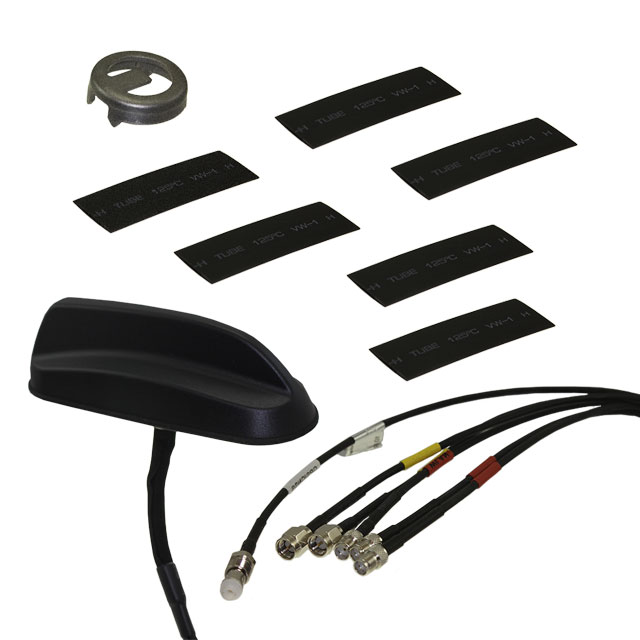

MULTI FUNCTION MIMO ANTENNA 2G/3
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Max | 25 W |
| AC and DC characteristics | |
| Frequency (Center/Band) | 829MHz, 1.587GHz, 1.94GHz, 2.4GHz, 3.15GHz, 5.45GHz |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 3.8GHz, 4.9GHz ~ 6GHz |
| Gain | 2dBi, 4dBi, 5dBi, 6dBi |
| Environment and package | |
| Height (Max) | 1.969" (50.00mm) |
| Mounting Type | Panel Mount |
| Package | Bag |
| Other | |
| Antenna Type | Dome |
| Applications | 2G, 3G, 4G, Beidou, Galileo, GNSS, GPS, WLAN |
| Base Product Number | 2332157 |
| Features | Cable - 300mm, LNA |
| Ingress Protection | IP66 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Bands | 6 |
| Product Status | Obsolete |
| Return Loss | - |
| RF Family/Standard | Cellular, Navigation |
| Series | - |
| Termination | FME, SMA |
| VSWR | 2 |
