242192

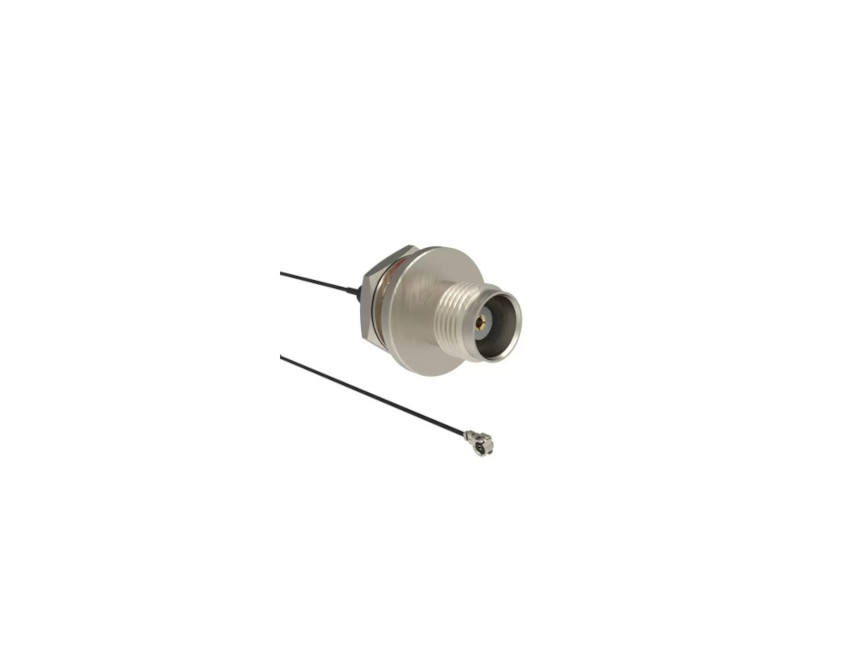

CONN ADAPT TNC JACK TO AMC JACK

All alternatives

AC and DC characteristics
Frequency - Max	6 GHz
Impedance	50Ohm
Environment and package
Mounting Feature	Bulkhead
Mounting Type	Panel Mount
Operating Temperature	-65°C~165°C
Package	Bag
Other
Adapter Series	TNC to U.FL (UMCC), AMC
Adapter Type	Jack to Jack
Base Product Number	2421
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Female to Male
Conversion Type	Between Series
Convert From (Adapter End)	TNC Jack, Female Socket
Convert To (Adapter End)	U.FL (UMCC) Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On, Threaded
Features	-
Includes	3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Ingress Protection	-
Insertion Loss	-
Mating Cycles	-
Mfr	Amphenol RF
Product Status	Active
Series	-
Style	Straight
