WeidmüllerGermany

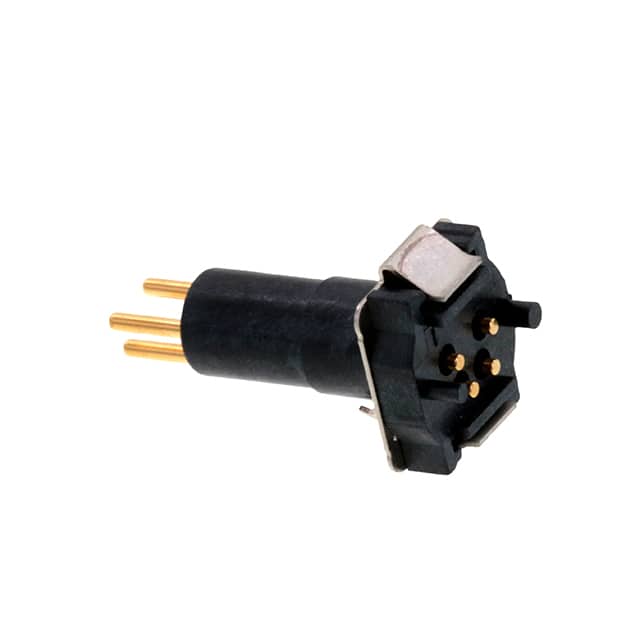

CONN MALE INSERT 4POS GOLD SLDR
All alternatives
View full reportTechnical parameters
Key specs
Positions4
GenderMale
Current rating4 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 4A |
| Voltage Rating | 30V |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C~95°C |
| Package | Bulk |
| Shell Size - Insert | M8-4 |
| Shell Size, MIL | - |
| Other | |
| Applications | Industrial Automation |
| Backshell Material, Plating | - |
| Base Product Number | SAID-M8 |
| Cable Opening | - |
| Color | Black |
| Connector Type | Insert, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Material | Copper Zinc |
| Fastening Type | - |
| Features | Board Guide, Insert Only, Requires Shell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | - |
| Mfr | Weidmüller |
| Number of Positions | 4 |
| Orientation | - |
| Primary Material | - |
| Product Status | Active |
| Series | SAI |
| Shell Finish | - |
| Shell Material | - |
| Shielding | Shielded |
| Termination | Solder |
