AmphenolUnited States

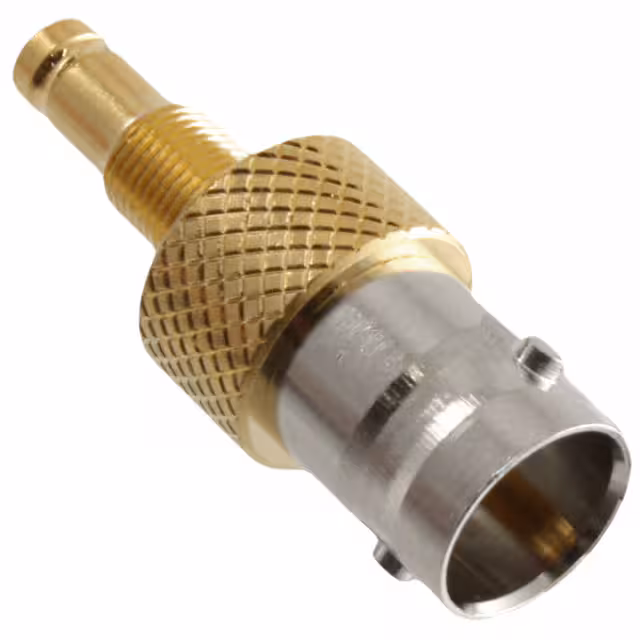

CONN ADAPT BNC JACK-1.0/2.3 JACK
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency - Max | 3 GHz |
| Impedance | 75Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -65°C~165°C |
| Package | Bulk |
| Other | |
| Adapter Series | BNC to 1.0/2.3 |
| Adapter Type | Jack to Jack |
| Base Product Number | 242229 |
| Body Finish | Gold; Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) | 1.0/2.3 Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock, Snap-On |
| Features | - |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | - |
| Mfr | Amphenol RF |
| Product Status | Active |
| Series | - |
| Style | Straight |
