2486-1511-000
Radiall USA, Inc.France

2486-1511-000

ActiveCoaxial Connector (RF) Assemblies

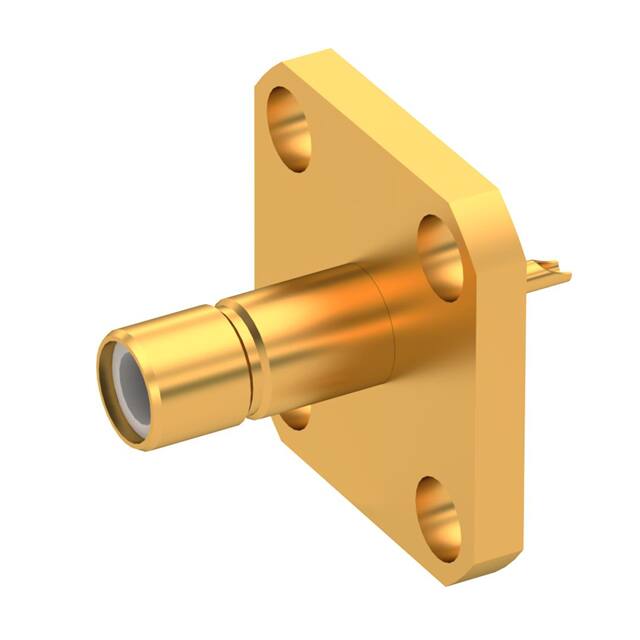

SMB / STRAIGHT JACK RECEPTACLE M

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Connector styleSMB
GenderFemale
Impedance50 Ω
Max frequency4 GHzMax
AC and DC characteristics
Frequency - Max4 GHz
Impedance50Ohm
Environment and package
Mounting FeatureFlange
Mounting TypePanel Mount
Operating Temperature-65°C~165°C
PackageBulk
Other
Base Product Number2486-1511
Body FinishGold
Body MaterialBrass
Cable Group-
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleSMB
Connector TypeJack, Male Pin
Contact TerminationSolder Cup
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On
Features-
Housing ColorGold
Includes-
Ingress Protection-
Insertion Loss0.30dB
Mating Cycles500
MfrRadiall USA, Inc.
Number of Ports1
Product StatusActive
Series-
Shield TerminationSolder

Documents

No documents are linked to this part yet.
