Alpha WireUnited States

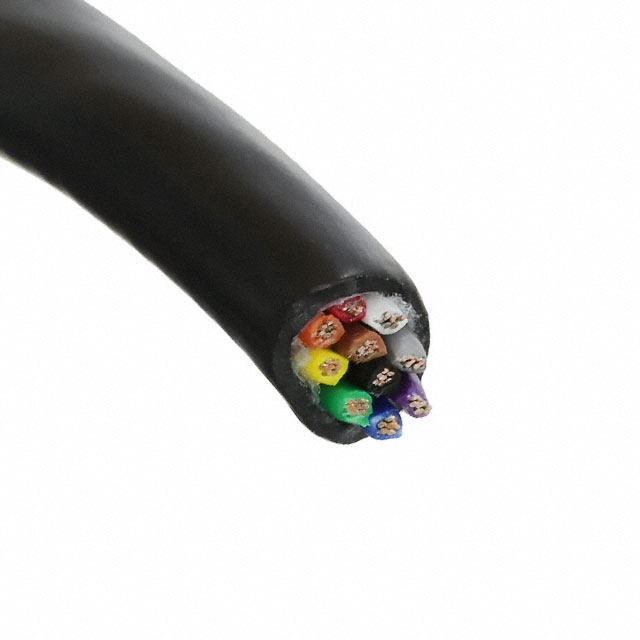

CABLE 10COND 22AWG BLK SHLD FEET
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 300 V |
| Environment and package | |
| Operating Temperature | -30°C ~ 90°C |
| Package | Digi-Spool®, Continuous Spool |
| Spool Size | 1000.0' (304.8m) |
| Other | |
| Base Product Number | 25110 |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 7/30 |
| Features | Biological Compatibility, Drain Wire, Rip Cord |
| Jacket Color | Black |
| Jacket (Insulation) Diameter | 0.296" (7.52mm) |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket (Insulation) Thickness | 0.0320" (0.813mm) |
| Length | Enter Number of Feet in Order Quantity |
| Mfr | Alpha Wire |
| Number of Conductors | 10 |
| Product Status | Active |
| Ratings | ISO 10993, UL Style 20668 |
| Series | Xtra-Guard® 2 |
| Shield Coverage | 100%, 70% |
| Shield Material | Suprashield®; Copper, Tinned |
| Shield Type | Foil, Braid |
| Usage | - |
| Wire Gauge | 22 AWG |
