25532

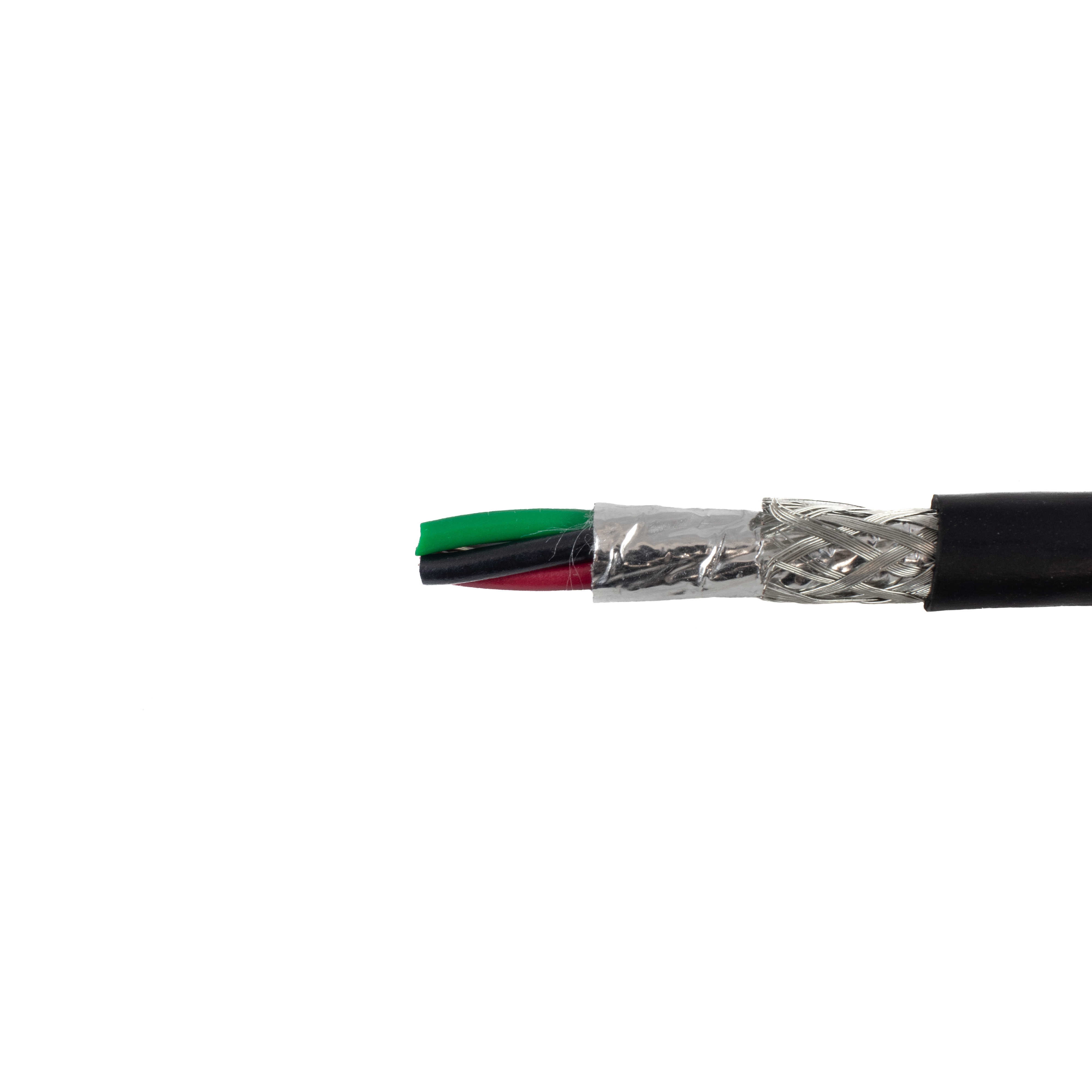

ActiveXtra-Guard 2 16 AWG 2 Conductor is a heavy-duty cable for use in industrial applications where abrasion and mechanical abuse is common.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 600 V RMS |
| AC and DC characteristics | |
| 4) Characteristic Impedance | 54 Ω |
| Environment and package | |
| 1) Temperature Range | -30 to 90°C |
| Other | |
| (1) Color Code | Alpha Wire Color Code E |
| 1) Component 1 | 2 X 1 COND |
| 1) UL | a) Component 1 |
| 2) Bend Radius | 10X Cable Diameter |
| 2) Cable Assembly | 2 Components Cabled |
| 2) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 2) Capacitance | 39 pF/ft @1 kHz, Nominal Conductor to Conductor |
| 3) CE | EU Low Voltage Directive 2014/35/EU |
| 3) Ground Capacitance | 70 pF/ft @1 kHz, Nominal |
| 3) Pull Tension | 67 Lbs, Maximum |
| 3) Shield | A/P/A Tape, 25% Overlap, Min. |
| 4) Sunlight Resistance | Yes |
| 5) Inductance | 0.2 μH/ft, Nominal |
| 6) Conductor DCR | 4.3 Ω/1000ft @20°C, Nominal |
| 7) OA Shield DCR | 1.83 Ω/1000ft @20°C, Nominal |
| a) Color(s) | Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White |
| a) Drain Wire | 16 (19/.0117) AWG Tinned Copper |
| a) Twists | 3.4 Twists/foot (min) |
| b) Braid | Tinned Copper,70% Coverage, Nom. |
| b) Orientation | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| b) Ripcord | 1 End 810 Denier Nylon |
| c) Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| Color | BLACK |
| Cond | 1 |
| c) Print | ALPHA WIRE-* P/N 25532 XTRAGUARD(R) 2 RU AWM 20669 VW-1 OR CRU AWM I/II A/B 90C 600 VOLTS FT1 CE ROHS (SEQ FOOTAGE) * = Factory Code |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
