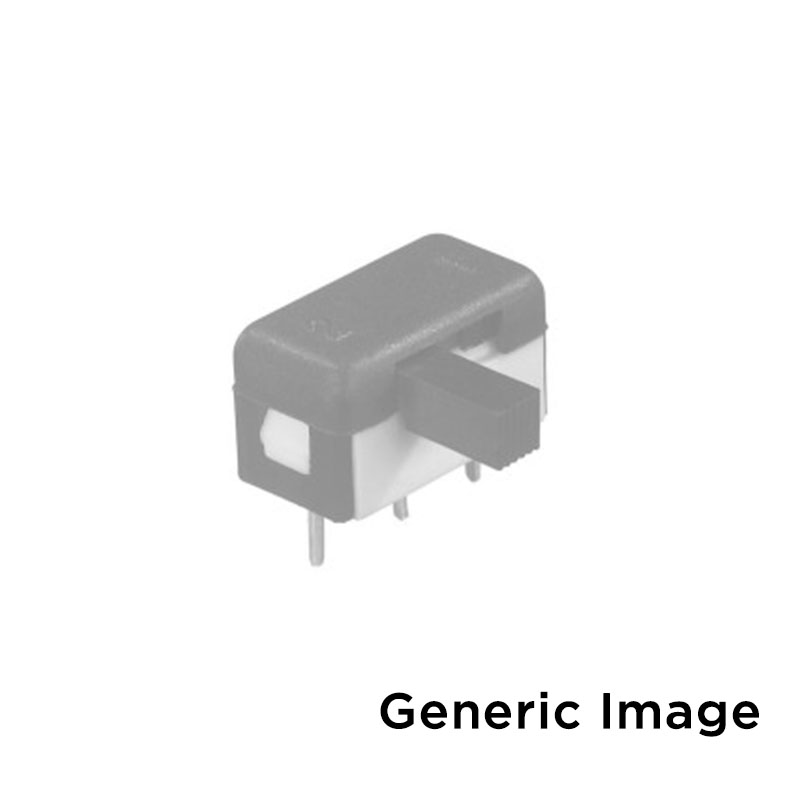

The 25536NABX601 PCB Switch offers a compact size, durable construction, and 5.08mm terminal spacing for easy installation. Ideal for controlling electrical circuits in various applications.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Max. current/voltage rating with resistive load | - silver contacts: 1 A 30 VDC- gold plated brass contacts: 100 mA 30 VDC |
| Environment and package | |
| Actuator height (outside case) | - high: 2.80 mm (.110)- extra high: 6 mm (.236)- side: 2.3 mm (.090)- long side: 6 mm (.236) |
| Operating temperature | -40 °C to +85 °C |
| Other | |
| Actuator | Flush |
| Approvals | Special Contact |
| Contacts | Silver |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles2,000 Vrms 50 Hz min. between terminals and frame |
| Electrical Functions | ON OFF |
| Electrical life | 10,000 cycles at full load |
| Initial contact resistance | - silver contacts (A): 10 mΩ max.- gold plated brass contacts (LD): 50 mΩ max. |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Low level or mechanical life | 20,000 cycles |
| Minimum load | - silver contacts (A): 100 mA 10 V- gold plated brass contacts (LD): 10 µA 5 VDC - 10 mA 50 mV |
| Overall length | 14 mm (.551) |
| Poles | Single Pole |
| Terminals | Side Actuator Terminal Spacing 5.08mm(2in) |
| Travel | 4 mm (.157) |
| Version | N |
