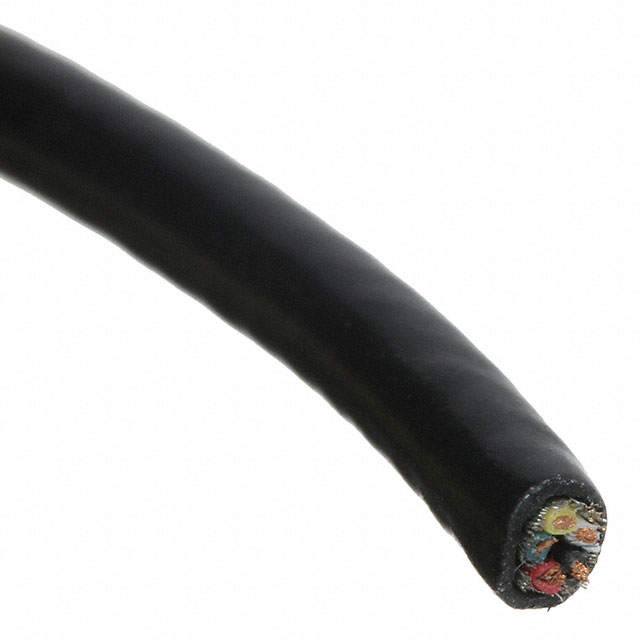

CABLE 5COND 26AWG BLK SHLD 100'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 200 V |
| Environment and package | |
| Operating Temperature | -40°C ~ 105°C |
| Package | Spool |
| Other | |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand | 105/46 |
| Features | - |
| Jacket Color | Black |
| Jacket (Insulation) Diameter | 0.130" (3.30mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.0120" (0.305mm) |
| Length | 100.0' (30.5m) |
| Mfr | Daburn Electronics |
| Number of Conductors | 5 |
| Product Status | Active |
| Ratings | - |
| Series | - |
| Shield Coverage | - |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Usage | - |
| Wire Gauge | 26 AWG |
Documents
No documents are linked to this part yet.
