Littelfuse Inc.United States

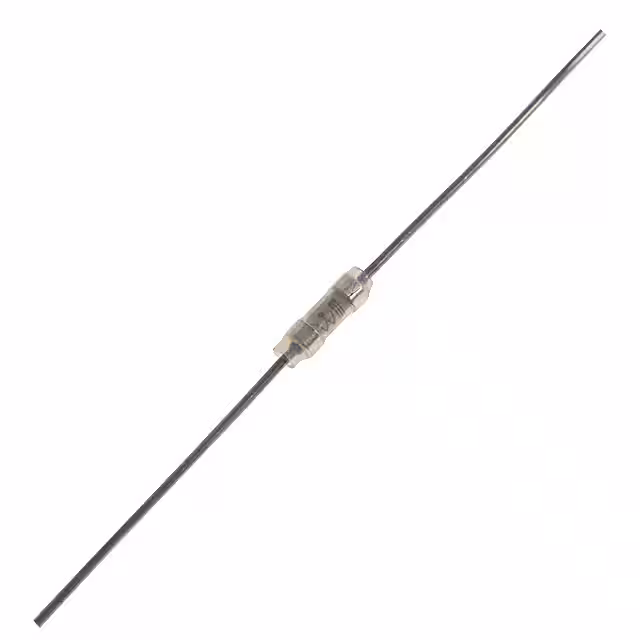

FUSE BRD MNT 4A 125VAC/VDC AXIAL
All alternatives
View full reportTechnical parameters
Key specs
Rated current4 A
Rated voltage125 V
Response timeFast
Breaking capacity50 ~ 300 A
| Power | |
|---|---|
| Breaking Capacity @ Rated Voltage | 50A AC, 300A DC |
| Current Rating (Amps) | 4 A |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Package / Case | Cartridge, Non-Standard (Axial) |

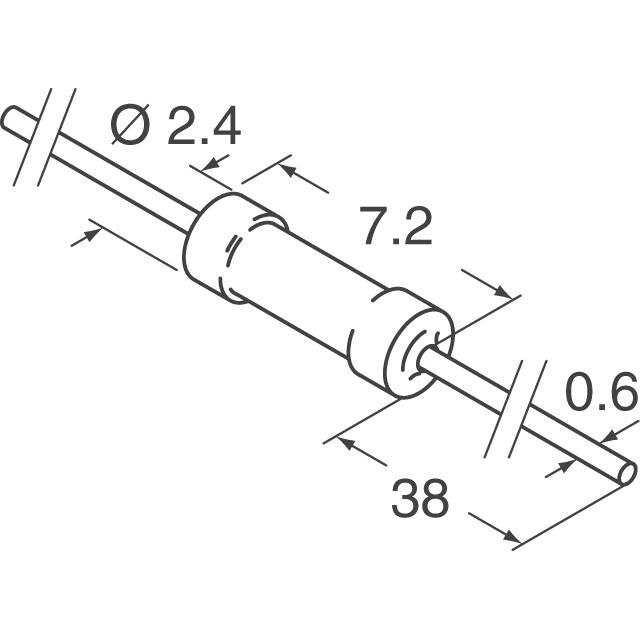

| Size / Dimension | 0.094" Dia x 0.283" L (2.40mm x 7.20mm) |
| Other | |
| Approval Agency | CE, cUL, UL |
| Color | - |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 3.2 |
| Mfr | Littelfuse Inc. |
| Product Status | Obsolete |
| Response Time | Fast Blow |
| Series | 275 |
Documents
No documents are linked to this part yet.
