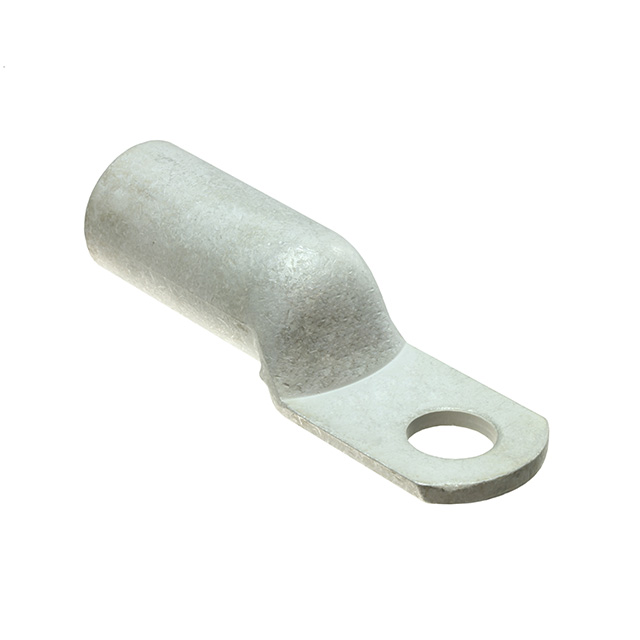

CONN RING FLAT 1/0AL 2CU #3/8
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Bulk |
| Stud/Tab Size | 3/8 Stud |
| Other | |
| Base Product Number | 277151 |
| Color | - |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | - |
| Insulation | Non-Insulated |
| Insulation Diameter | 0.425" ~ 0.470" (10.79mm ~ 11.94mm) |
| Length - Overall | 2.510" (63.75mm) |
| Material - Insulation | - |
| Mfr | TE Connectivity Aerospace, Defense and Marine |
| Product Status | Active |
| Series | Copalum |
| Terminal Type | Flat Sided, Tubular (Battery Lugs) |
| Termination | Crimp |
| Thickness | 0.100" (2.54mm) |
| Width - Outer Edges | 0.812" (20.62mm) |
| Wire Gauge | 1/0 AWG (Al), 2 AWG (Cu) |
