Pololu CorporationUnited States

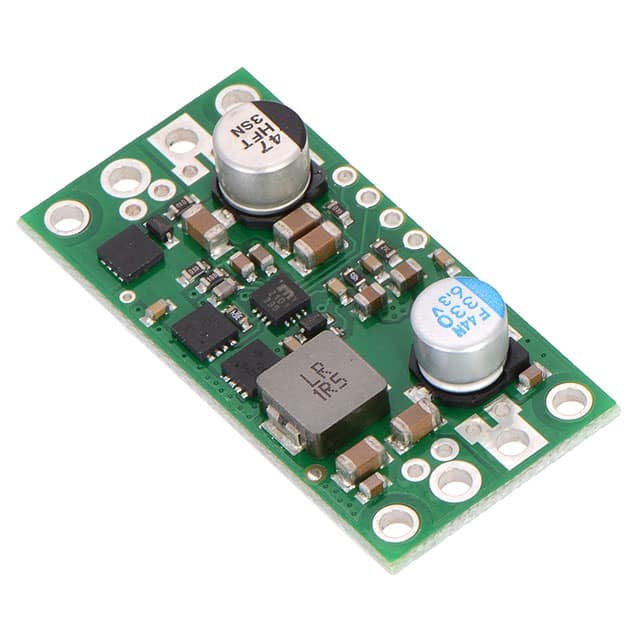

DC DC CONVERTER 5V 45W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage5 ~ 38 V
Output voltage5 V
Output current9 AMax
Power45 WMax
IsolationNon-isolated
| Power | |
|---|---|
| Current - Output (Max) | 9A |
| Power (Watts) | 45 W |
| Voltage - Input (Max) | 38V |
| Voltage - Input (Min) | 5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | - |
| Package / Case | - |
| Size / Dimension | 1.60" L x 0.80" W x 0.30" H (40.6mm x 20.3mm x 7.6mm) |
| Supplier Device Package | - |
| Other | |
| Applications | - |
| Approval Agency | - |
| Control Features | Enable, Active Floating |
| Efficiency | 95% |
| Features | - |
| Mfr | Pololu Corporation |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | D24V90 |
| Type | Non-Isolated PoL Module |
Documents
No documents are linked to this part yet.
