Phoenix ContactGermany

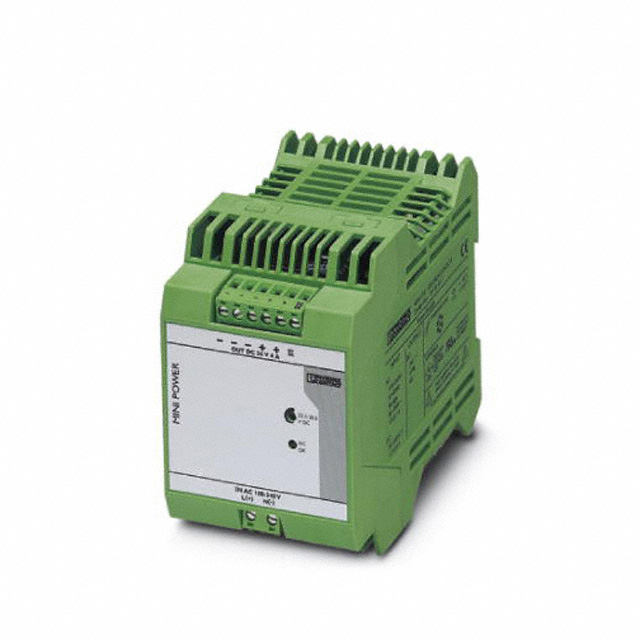

AC/DC DIN RAIL SUPPLY 24V 96W
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| AC Voltage - Input | 100 ~ 240 VAC |
| Current - Output (Max) | 4A |
| Power (Watts) | 96W |
| Voltage - Isolation | 4 kV |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Package | Box |
| Size / Dimension | 4.21" L x 2.66" W x 3.90" H (107.0mm x 67.5mm x 99.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | cULus, cURus |
| Efficiency | 88% |
| Features | Adjustable Output, Load Sharing, PFC, Universal Input |
| Input Type | AC |
| Mfr | Phoenix Contact |
| Minimum Load Required | - |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | MINI |
