Phoenix ContactGermany

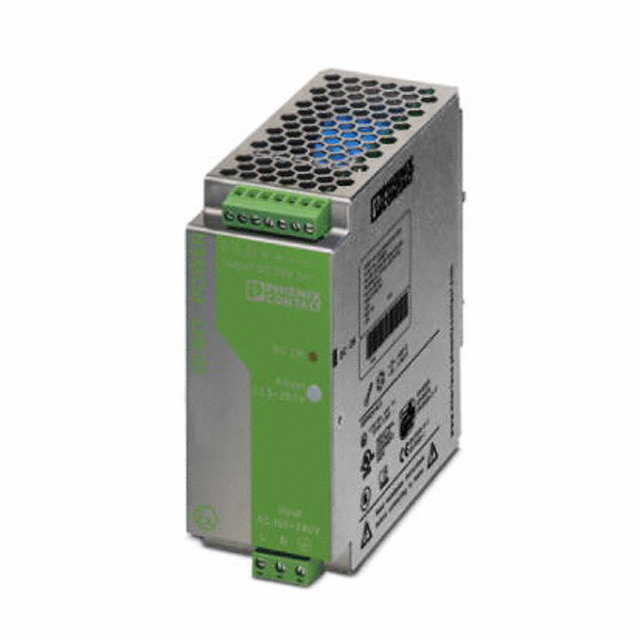

AC/DC DIN RAIL SUPPLY 24V 120W
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| AC Voltage - Input | 85 ~ 264 VAC |
| Current - Output (Max) | 5A |
| Power (Watts) | 120W |
| Voltage - Isolation | 4 kV |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Package | Bulk |
| Size / Dimension | 5.12" L x 2.17" W x 4.92" H (130.0mm x 55.0mm x 125.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, cULus, cURus |
| Efficiency | 87% |
| Features | Adjustable Output, IP20, Load Sharing, Universal Input |
| Input Type | AC |
| Mfr | Phoenix Contact |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | Quint |
