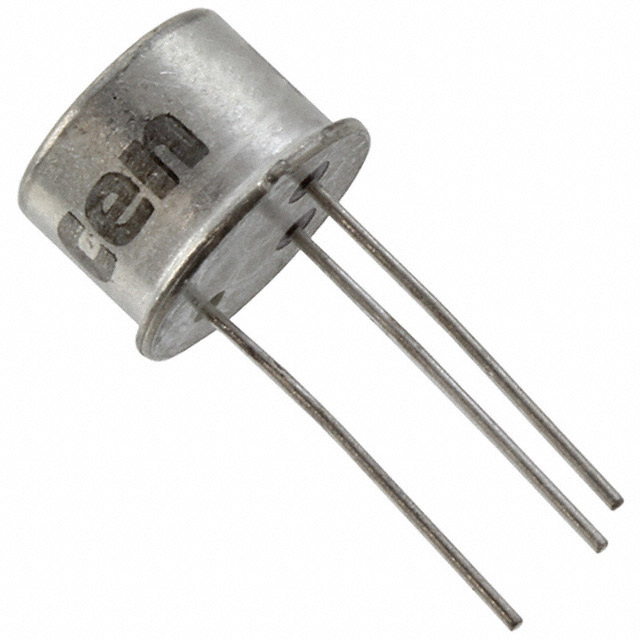

2N3866 PBFREE

RF TRANS NPN 30V 500MHZ TO39

All alternatives

Power
Current - Collector (Ic) (Max)	400mA
Power - Max	5W
Voltage - Collector Emitter Breakdown (Max)	30V
AC and DC characteristics
DC Current Gain (hFE) (Min) @ Ic, Vce	10 @ 50mA, 5V
Frequency - Transition	500MHz
Gain	-
Noise Figure (dB Typ @ f)	-
Environment and package
Mounting Type	Through Hole
Operating Temperature	-65°C ~ 200°C (TJ)
Package	Bulk

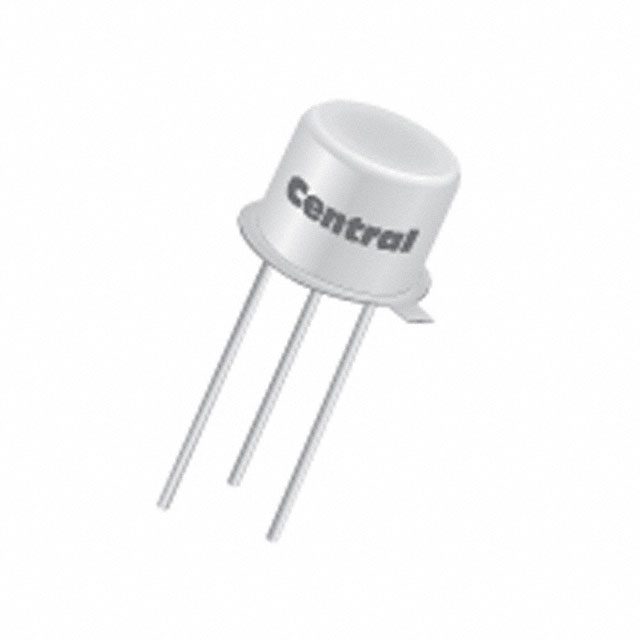

Package / Case	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-39
Other
Mfr	Central Semiconductor Corp
Product Status	Obsolete
Series	-
Transistor Type	NPN

No documents are linked to this part yet.
