Central Semiconductor CorpUnited States

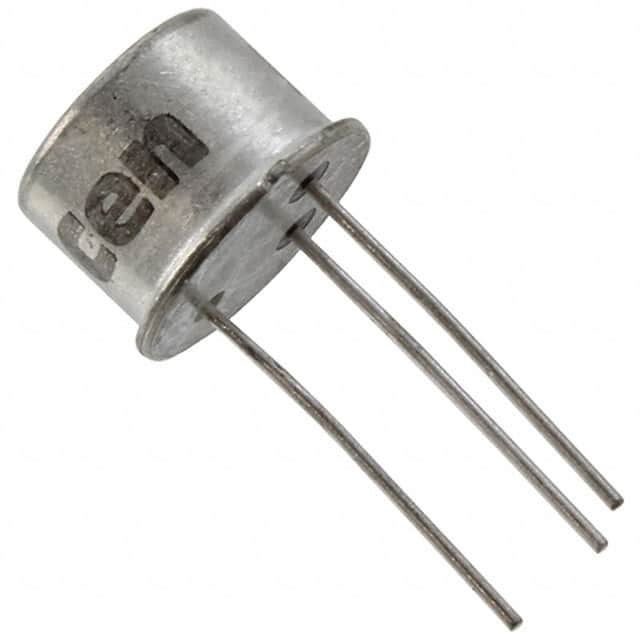

RF TRANS NPN 30V 500MHZ TO39
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 400mA |
| Power - Max | 5W |
| Voltage - Collector Emitter Breakdown (Max) | 30V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 10 @ 50mA, 5V |
| Frequency - Transition | 500MHz |
| Gain | 10dB |
| Noise Figure (dB Typ @ f) | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C~200°C(TJ) |
| Package | Tray |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-39 |
| Other | |
| Mfr | Central Semiconductor Corp |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | NPN |
