Microsemi CorporationUnited States

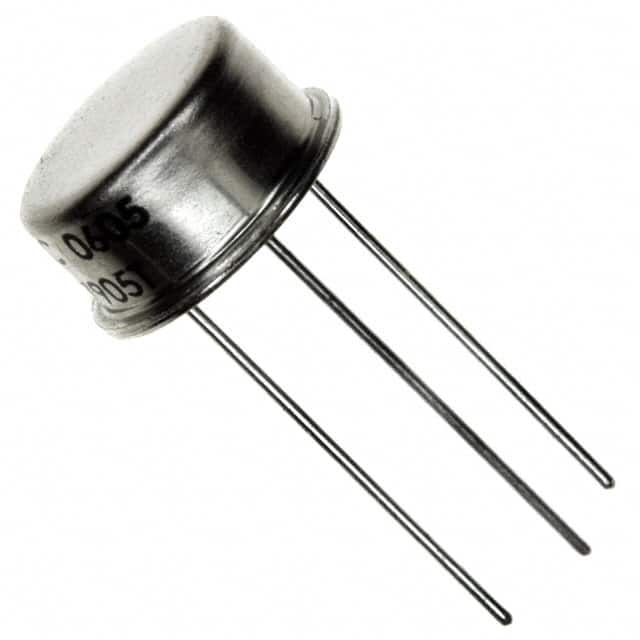

TRANS NPN 30V 0.4A TO-39
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage30 V
Collector current400 mAMax
DC current gain1550mA
Power1 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 20µA |
| Current - Collector (Ic) (Max) | 400 mA |
| Power - Max | 1 W |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 50mA, 5V |
| Frequency - Transition | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C~200°C(TJ) |
| Package | Bulk |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-39 (TO-205AD) |
| Other | |
| Mfr | Microsemi Corporation |
| Product Status | Active |
| Series | - |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 10mA, 100mA |
