Solid State Inc.United States

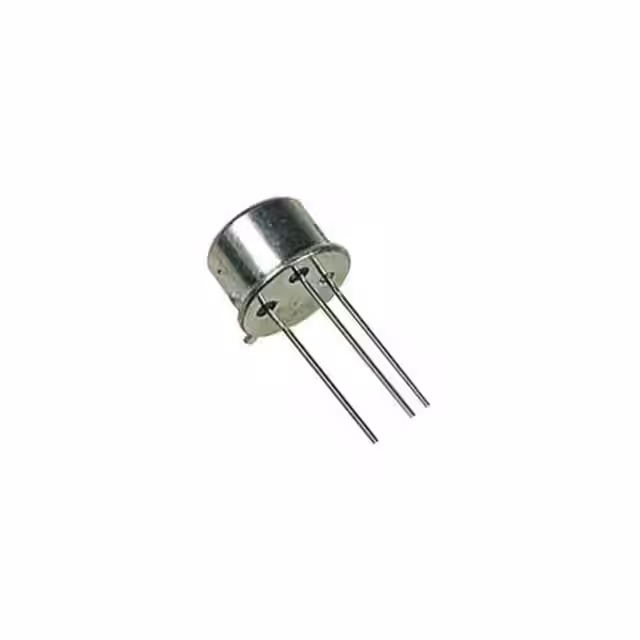

NPN SIL TRANS TO 39
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100µA |
| Current - Collector (Ic) (Max) | 400mA |
| Power - Max | 5W |
| Voltage - Collector Emitter Breakdown (Max) | 30V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 10 @ 50mA, 5V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C~200°C(TJ) |
| Package | Box |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-39 |
| Other | |
| Mfr | Solid State Inc. |
| Product Status | Active |
| Series | - |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 20mA, 100mA |
Documents
No documents are linked to this part yet.
