Yangjie TechnologyChina

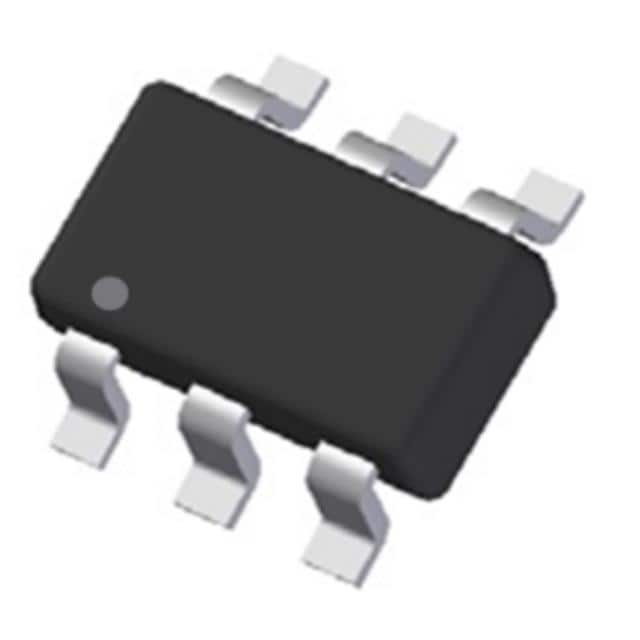

SOT-363 N 60V 0.34A Transistors
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 340mA |
| Drain to Source Voltage (Vdss) | 60V |
| Power - Max | 300mW |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Other | |
| FET Feature | Standard |
| FET Type | 2 N-Channel (Dual) |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 25V |
| Mfr | Yangjie Technology |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 2.5Ohm @ 300mA, 10V |
| Series | - |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
Documents
DatasheetDatasheet · 541.3 KB · 2026-09-22EnvironmentalEnvironmental · 5.9 MB · 2026-09-22EnvironmentalEnvironmental · 5.8 MB · 2026-09-22EnvironmentalEnvironmental · 1.5 MB · 2026-09-22EnvironmentalEnvironmental · 1.4 MB · 2026-09-22Package DrawingPackage Drawing · 328.5 KB · 2026-09-22
Open document center
