PanasonicJapan

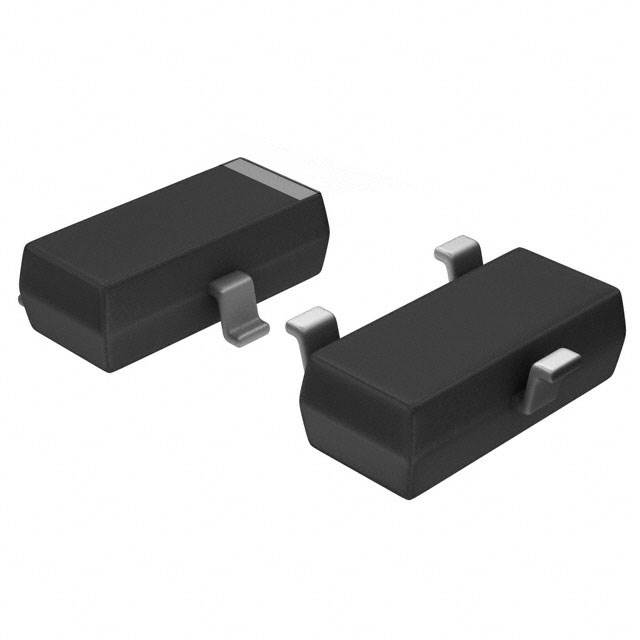

MOSFET N-CH 60V 300MA SOT23-3
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage60 V
Continuous drain current300 mA
On-resistance3 ΩMax · 100mA
Gate threshold voltage3 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 300mA (Ta) |
| Drain to Source Voltage (Vdss) | 60 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Power Dissipation (Max) | 350mW (Ta) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Other | |
| Base Product Number | 2N7002 |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 0.8 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 40 pF @ 10 V |
| Mfr | Panasonic Electronic Components |
| Product Status | Obsolete |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 100mA, 10V |
| Series | - |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
