onsemiUnited States

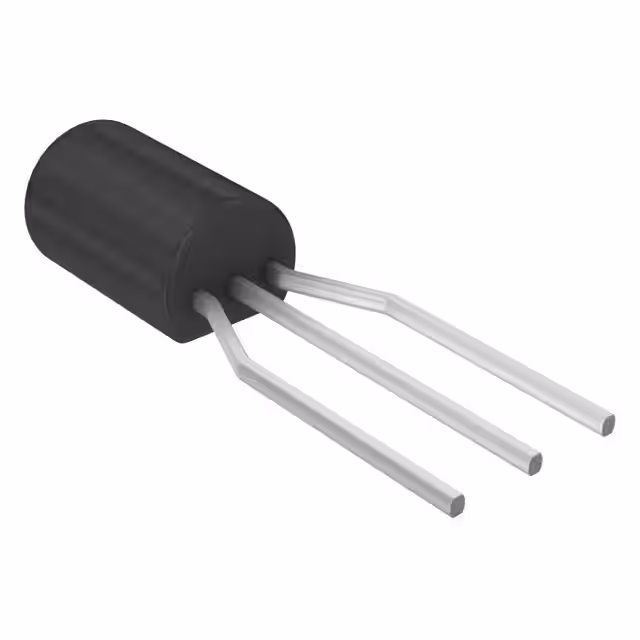

TRANS PNP 50V 2A TO92
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage50 V
Collector current2 AMax
DC current gain70500mA
Power900 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| Current - Collector (Ic) (Max) | 2 A |
| Power - Max | 900 mW |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 500mA, 2V |
| Frequency - Transition | 100MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Bulk |
| Package / Case | TO-226-3, TO-92-3 Long Body |
| Supplier Device Package | TO-92 (TO-226) |
| Other | |
| Base Product Number | 2SA1020 |
| Mfr | onsemi |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 1A |
