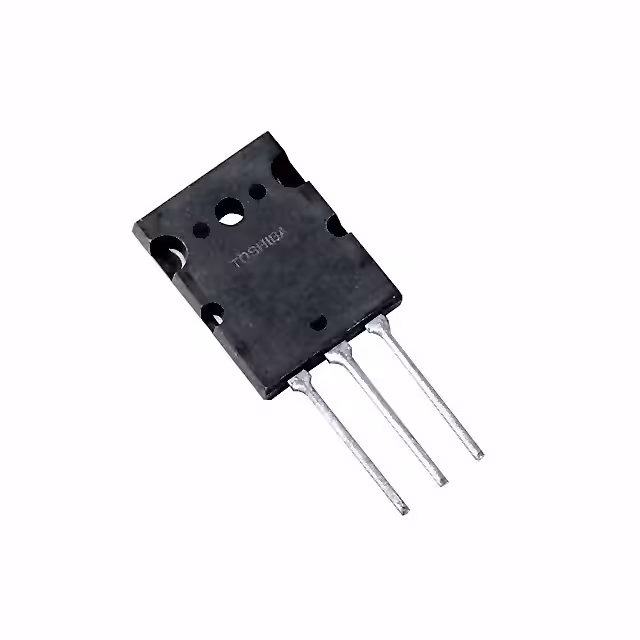

TRANS NPN 230V 15A TO3P
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage230 V
Collector current15 AMax
DC current gain801A
Power150 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 5µA (ICBO) |
| Current - Collector (Ic) (Max) | 15 A |
| Power - Max | 150 W |
| Voltage - Collector Emitter Breakdown (Max) | 230 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 1A, 5V |
| Frequency - Transition | 30MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C(TJ) |
| Package | Tube |
| Package / Case | TO-3PL |
| Supplier Device Package | TO-3P(L) |
| Other | |
| Base Product Number | 2SC5200 |
| Mfr | Toshiba Semiconductor and Storage |
| Product Status | Active |
| Series | - |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 800mA, 8A |
