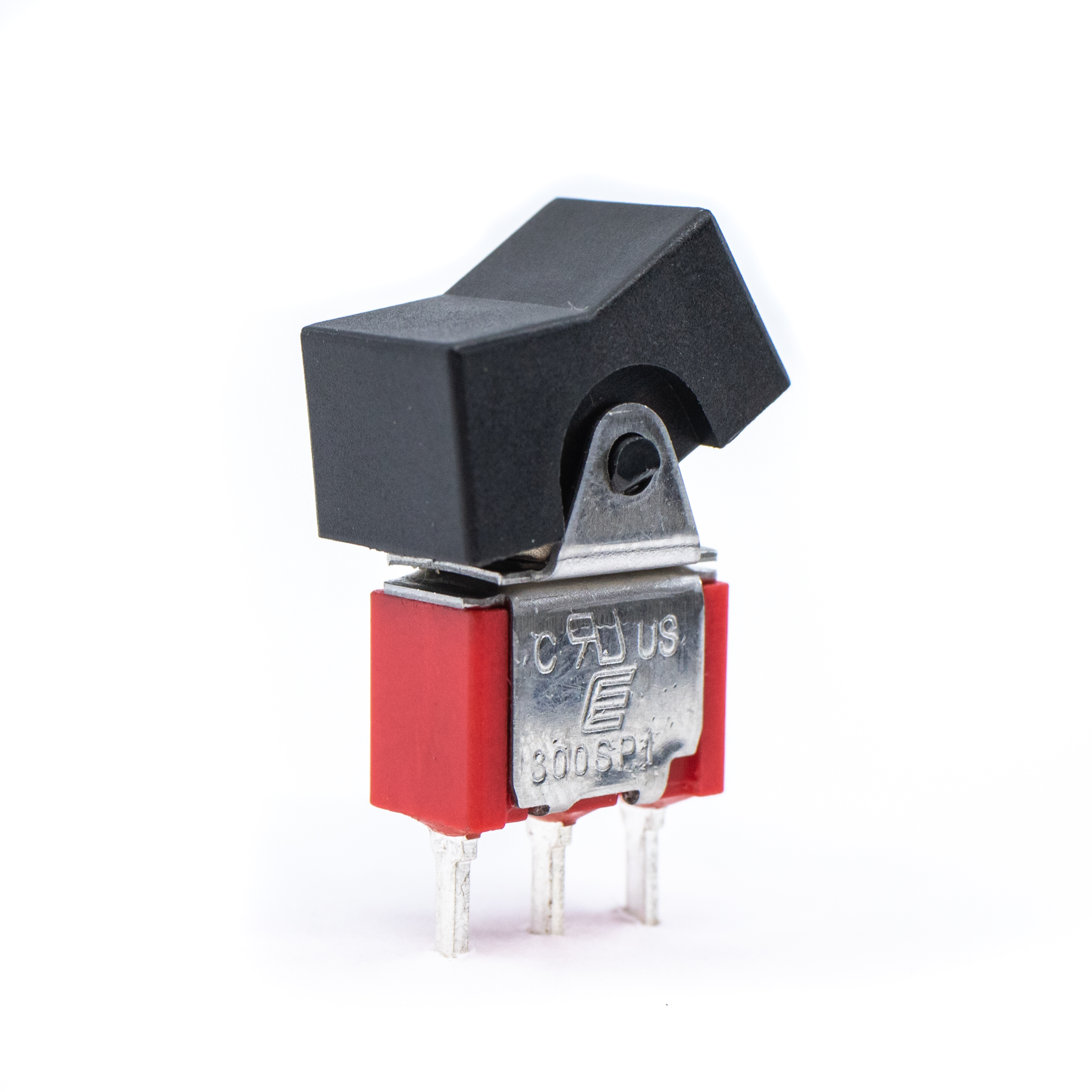

300
E-SwitchUnited States

300

ActiveRocker Switches

Miniature Rocker Switch, UL certified, 1-4 poles, latching or momentary, panel mount or through hole, vertical or rt. angle, rocker or paddle.

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

CircuitSPDT
Power
Current Rating5A
Voltage Rating120VAC/28VDC
Environment and package
Mounting TypeThrough Hole
Operating Temperature-40°C to 85°C
Other
Actuator ColorBlack
Actuator TypeConcave (Standard V)
CircuitSPDT
Contact MaterialSilver
FunctionOn-On
Illumination ColorNon-illuminated
Illumination StyleNon-illuminated
PackagingBulk
Series Name300
Termination TypePC Pin

Documents

DatasheetDatasheet · 4.0 MB · 2026-09-23EnvironmentalEnvironmental · 207.2 KB · 2026-09-23EnvironmentalEnvironmental · 172.0 KB · 2026-09-23Package DrawingPackage Drawing · 119.0 KB · 2026-09-23EnvironmentalEnvironmental · 42.7 KB · 2026-09-23
Open document center
