Song Chuan(松川)China
Micro 280 automotive relay.; SPNO & SPDT contact configurations.; NO contacts switch 35A resistive load, NC contacts switch 20A resistive load, 100,000 ops., 23°C.
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage24 V
| Power | |
|---|---|
| Coil voltage | DC | 6, 12, 24V |
| Max. Allowable Contact current(A) | 35A |
| Power consumption | DC | 1.2W |
| Other | |
| 1. | 301 | — | Basic series designation |
| 2. | 1A | — | Single pole normally open |
| 3. | D | — | Dust cover |
| 301 | – | 1A | – | D | – | □ | | □ |
| 4. | Blank | — | Standard type |
| 5. | □ | — | Coil voltage (please refer to the coil rating data for the availability) |
| AC | —— |
| Contact and coil | 500VAC |
| Contact circuits | —— |
| Contact configuration | 1A, 1C |
| Contact rating | Resistive load | NO: 35A 14VDC, 15A 28VDC, NC: 20A 14VDC, 10A 28VDC |
| Dielectric strength | Open contact | 500VAC |
| Electrical(Min.) | 1×105 |
| Life expectancy | Mechanical(Min.) | 1×107 |

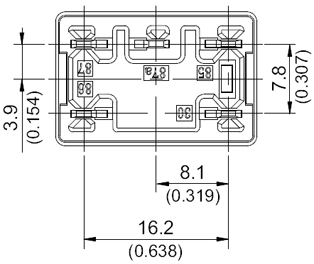

| Outline (L×W×H) mm | 22.5 × 15 × 25 |
