Littelfuse Inc.United States

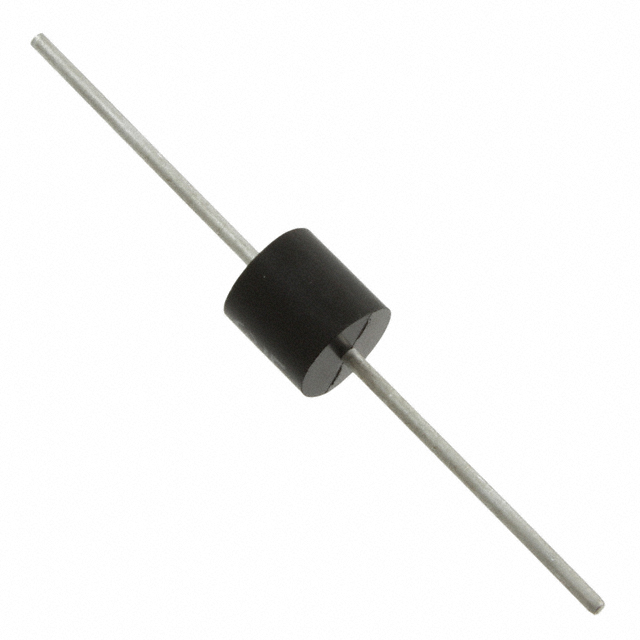

TVS DIODE 198VWM 319.8VC P600
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage198 V
Breakdown voltage221.2 V
Clamping voltage319.8 VMax
Peak pulse power30 kW
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 94.7A |
| Power Line Protection | No |
| Power - Peak Pulse | 30000W (30kW) |
| Voltage - Breakdown (Min) | 221.2V |
| Voltage - Clamping (Max) @ Ipp | 319.8V |
| Voltage - Reverse Standoff (Typ) | 198V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Package | Bulk |
| Package / Case | P600, Axial |
| Supplier Device Package | P600 |
| Other | |
| Applications | General Purpose |
| Base Product Number | 30KPA |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Series | 30KPA |
| Type | Zener |
