3296W-1-103R
Bourns Inc.United States

3296W-1-103R

ActiveTrimmer Potentiometers

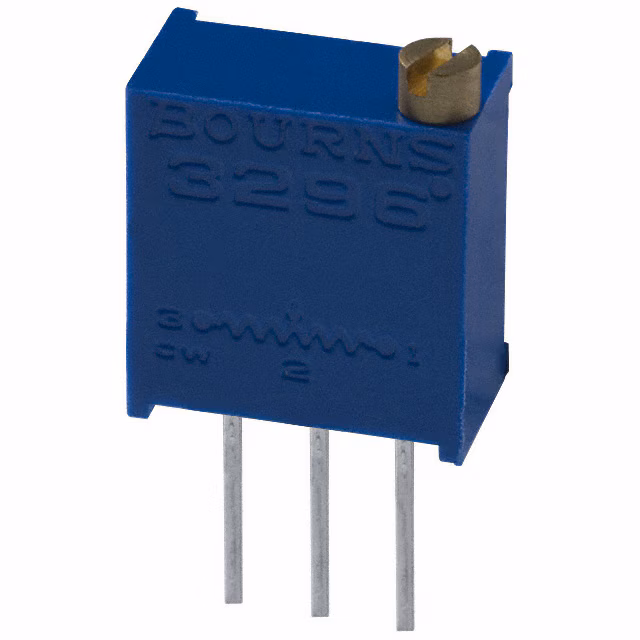

TRIMMER 10K OHM 0.5W PC PIN TOP

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Resistance10 kΩ
Tolerance10 %
Power500 mWMax
Turns25
Power
Power (Watts)0.5W, 1/2W
Environment and package
Mounting TypeThrough Hole
PackageTape & Reel (TR)
Size / DimensionRectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm)
Temperature Coefficient±100ppm/°C
Other
Adjustment TypeTop Adjustment
Base Product Number3296W
MfrBourns Inc.
Number of Turns25
Product StatusActive
Resistance10 kOhms
Resistive MaterialCermet
SeriesTrimpot® 3296 - Sealed

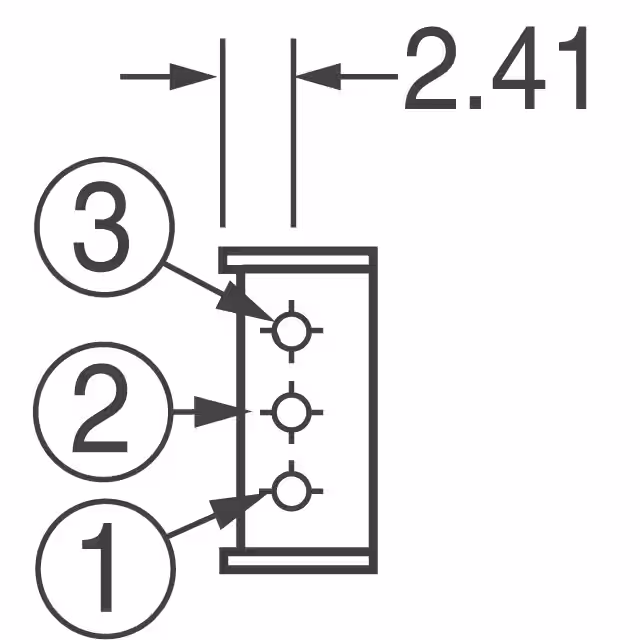

Termination StylePC Pins
Tolerance±10%
