Tallysman Wireless Inc.Canada

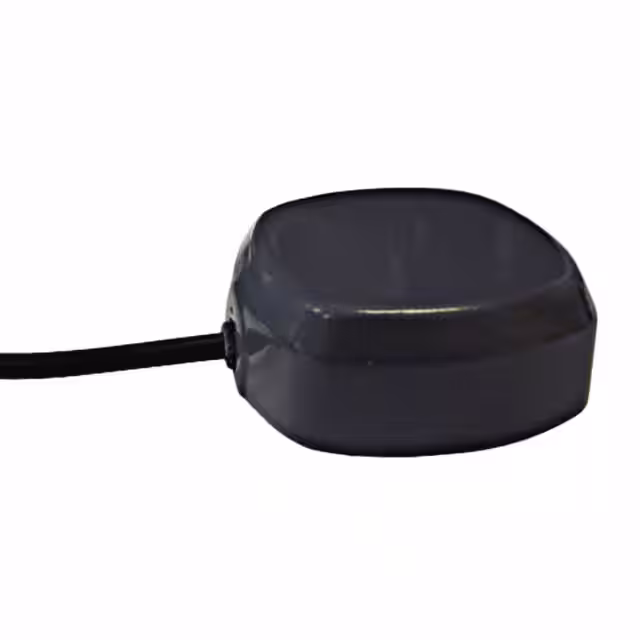

RF ANT 1.561GHZ/1.575GHZ MOD 3M
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency (Center/Band) | 1.561GHz, 1.575GHz |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.557GHz ~ 1.593GHz |
| Gain | 4.5dBic |
| Environment and package | |
| Height (Max) | 0.563" (14.30mm) |
| Mounting Type | Magnetic |
| Package | Bulk |
| Other | |
| Antenna Type | Module |
| Applications | Beidou, Galileo, GPS |
| Features | Cable - 3m, LNA, Filter |
| Ingress Protection | IP67 |
| Mfr | Tallysman Wireless Inc. |
| Number of Bands | 2 |
| Product Status | Obsolete |
| Return Loss | - |
| RF Family/Standard | Navigation |
| Series | Accutenna® |
| Termination | SMA Male |
| VSWR | 1.5 |
