TE ConnectivitySwitzerland
CONN BNC TWIN PLUG STR CRIMP
All alternatives
View full reportTechnical parameters
Key specs
Connector styleBNC
GenderFemale
| Power | |
|---|---|
| Voltage Rating | 500 V |
| AC and DC characteristics | |
| Impedance | Non-Constant |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -55°C ~ 85°C |
| Package | Bulk |
| Other | |
| Base Product Number | 3322 |
| Body Finish | Silver |
| Body Material | Brass |
| Cable Group | RG-108, 108A |
| Center Contact Material | - |
| Center Contact Plating | Silver |
| Connector Style | BNC, Twinaxial |
| Connector Type | Plug, Female Socket and Male Pin |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Features | - |
| Housing Color | Silver |

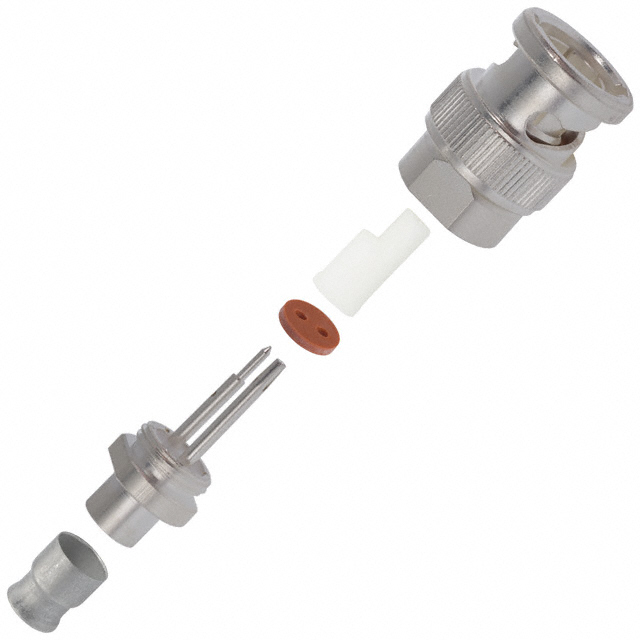

| Includes | 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Insulator |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 200 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Ports | 1 |
| Product Status | Obsolete |
| Series | Coaxicon |
| Shield Termination | Crimp |
