Cornell Dubilier / Illinois CapacitorUnited States

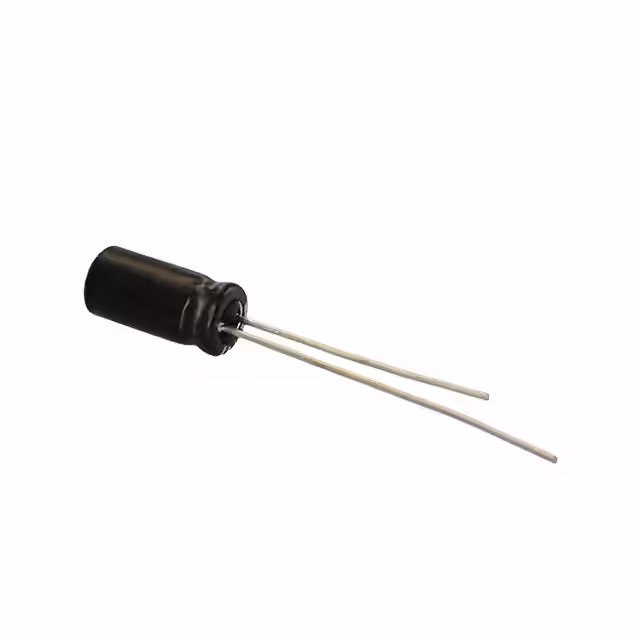

CAP ALUM 0.33UF 20% 50V RADIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance330 nF
Rated voltage50 V
Tolerance20 %
ESR502.4 ΩMax · 120Hz
Lifetime2 kh85°C
| Power | |
|---|---|
| Voltage - Rated | 50 V |
| AC and DC characteristics | |
| Ripple Current @ High Frequency | 9.89 mA @ 100 kHz |
| Ripple Current @ Low Frequency | 4.3 mA @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Package / Case | Radial, Can |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Surface Mount Land Size | - |
| Other | |
| Applications | General Purpose |
| Capacitance | 0.33 µF |
| ESR (Equivalent Series Resistance) | 502.38Ohm @ 120Hz |
| Lead Spacing | 0.079" (2.00mm) |
| Mfr | Cornell Dubilier / Illinois Capacitor |
| Polarization | Polar |
| Product Status | Obsolete |
| Ratings | - |
| Series | CKR |
| Tolerance | ±20% |
