Cornell Dubilier / Illinois CapacitorUnited States

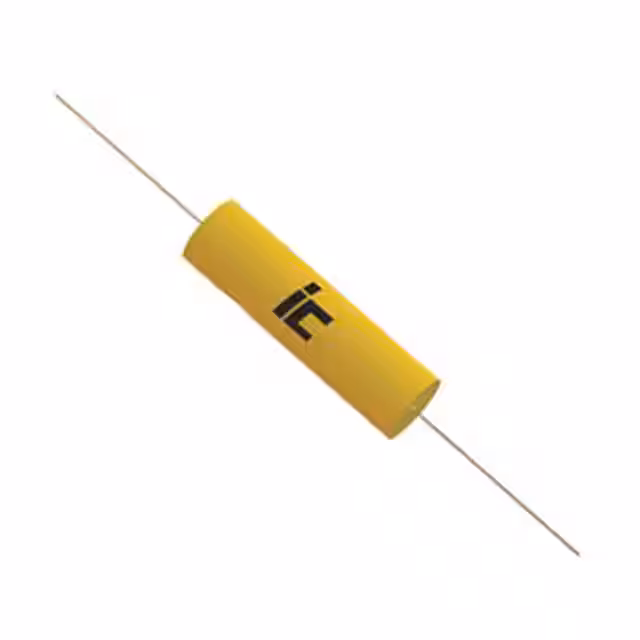

CAP FILM 0.33UF 10% 250VDC AXIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance330 nF
Rated voltage250 V
Tolerance10 %
| Power | |
|---|---|
| Voltage Rating - AC | 160V |
| Voltage Rating - DC | 250V |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~105°C |
| Package | Bulk |
| Package / Case | Axial |
| Size / Dimension | 0.315" Dia x 0.748" L (8.00mm x 19.00mm) |
| Other | |
| Applications | General Purpose |
| Capacitance | 0.33 µF |
| Dielectric Material | Polyester, Metallized |
| Features | Low ESR |
| Lead Spacing | - |
| Mfr | Cornell Dubilier / Illinois Capacitor |
| Product Status | Active |
| Ratings | - |
| Series | MWR |
| Termination | PC Pins |
| Tolerance | ±10% |
