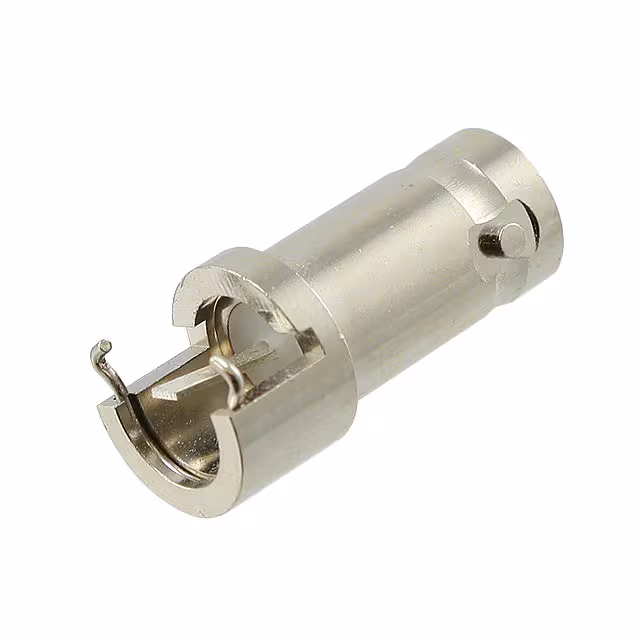

CONN BNC JACK STR 50OHM EDGE MNT
All alternatives
View full reportTechnical parameters
Key specs
Connector styleBNC
GenderFemale
Impedance50 Ω
Max frequency4 GHzMax
| Power | |
|---|---|
| Voltage Rating | 500 V |
| AC and DC characteristics | |
| Frequency - Max | 4 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Board Edge, End Launch |
| Operating Temperature | -65°C~165°C |
| Package | Tray |
| Other | |
| Base Product Number | 361V509 |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | - |
| Center Contact Material | Brass |
| Center Contact Plating | Tin |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polyethylene (PE) |
| Fastening Type | Bayonet Lock |
| Features | - |
| Housing Color | Silver |
| Includes | - |
| Ingress Protection | Weatherproof |
| Insertion Loss | 0.2dB |
| Mating Cycles | 500 |
| Mfr | Winchester Interconnect |
| Number of Ports | 1 |
| Product Status | Active |
| Series | V-Bite® |
| Shield Termination | Solder |
