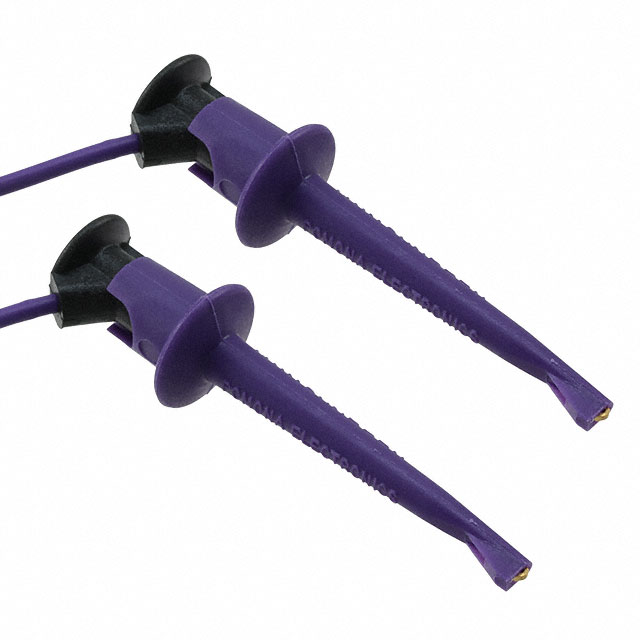

3781-60-7
Pomona ElectronicsUnited States

3781-60-7

Jumper, Specialty

MINI HOOK TO MINI HOOK 60"

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current Rating (Amps)5 A
Voltage - Rated30VAC, 60VDC
Environment and package
Temperature Range216°F (102°C)
Other
1st ConnectorMini Hook
2nd ConnectorMini Hook
Base Product Number3781
Cable Length60.0" (1524.00mm)
ConfigurationGrabber, Hook to Grabber, Hook
Contents1 Lead, Violet
ManufacturerPomona Electronics
Material - InsulationPoly-Vinyl Chloride (PVC)
PackagingBulk
Part StatusActive
SeriesMinigrabber® 3781
Wire Gauge20 AWG
