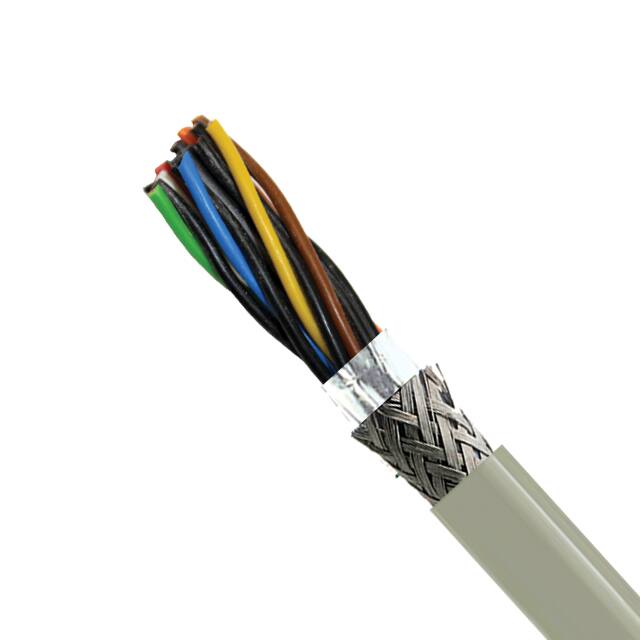

SAB North AmericaGermany
DC300DSTP 28/7PR US3 SHLD 1=1FT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 300 V |
| Environment and package | |
| Operating Temperature | 80°C |
| Package | Spool |
| Other | |
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC), Semi-Rigid |
| Conductor Material | Copper, Tinned |
| Conductor Strand | - |
| Features | - |
| Jacket Color | Tan |
| Jacket (Insulation) Diameter | 0.272" (6.91mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | - |
| Length | - |
| Mfr | SAB North America |
| Number of Conductors | 14 (7 Pair Twisted) |
| Product Status | Active |
| Ratings | - |
| Series | DC 300 DS TP |
| Shield Coverage | 100% |
| Shield Material | Aluminum; Copper, Tinned |
| Shield Type | Foil, Braid |
| Usage | - |
| Wire Gauge | 28 AWG |
