RubyconJapan

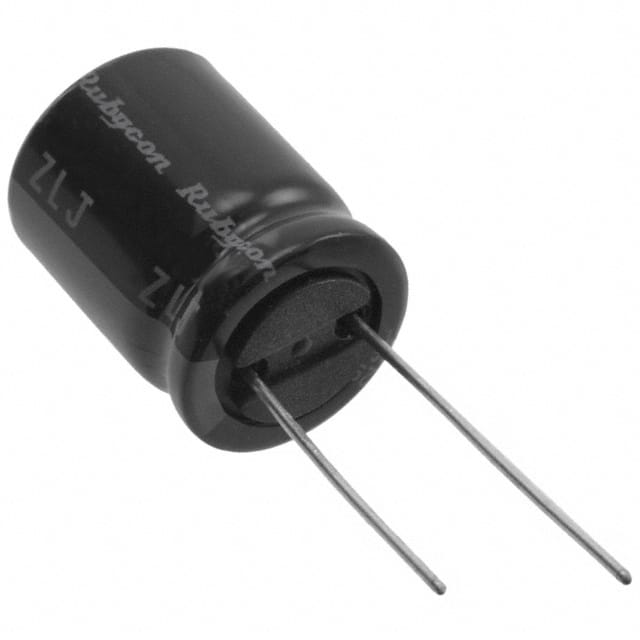

CAP ALUM 22UF 20% 400V RADIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance22 µF
Rated voltage400 V
Tolerance20 %
Lifetime2 kh105°C
| Power | |
|---|---|
| Voltage - Rated | 400 V |
| AC and DC characteristics | |
| Ripple Current @ High Frequency | 280.5 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 187 mA @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C~105°C |
| Package | Tape & Box (TB) |
| Package / Case | Radial, Can |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Surface Mount Land Size | - |
| Other | |
| Applications | Automotive |
| Capacitance | 22 µF |
| ESR (Equivalent Series Resistance) | - |
| Lead Spacing | 0.295" (7.50mm) |
| Mfr | Rubycon |
| Polarization | Polar |
| Product Status | Active |
| Ratings | AEC-Q200 |
| Series | WXA |
| Tolerance | ±20% |
