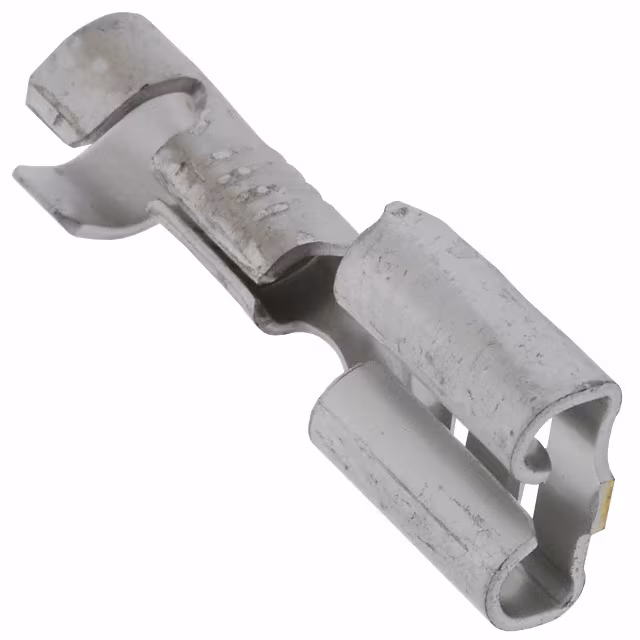

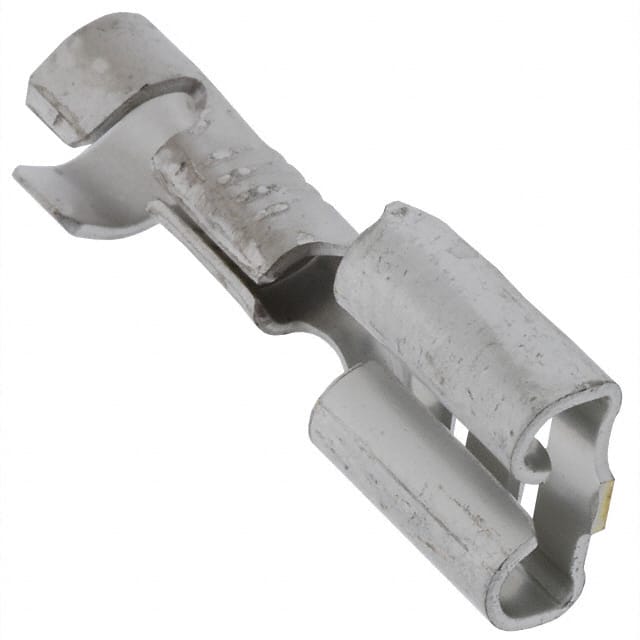

CONN QC RCPT 16-18AWG 0.250
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Bulk |
| Other | |
| Base Product Number | 4172 |
| Color | - |
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | - |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter | 0.120" ~ 0.145" (3.05mm ~ 3.68mm) |
| Length - Overall | 0.805" (20.45mm) |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | Faston |
| Tab Length | 0.305" (7.75mm) |
| Tab Thickness | 0.032" (0.81mm) |
| Tab Width | 0.250" (6.35mm) |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge | 16-18 AWG |
