MeritekUnited States

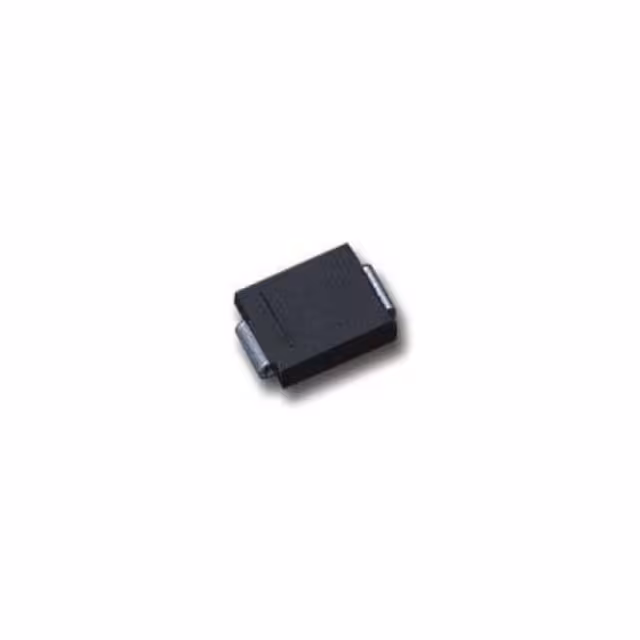

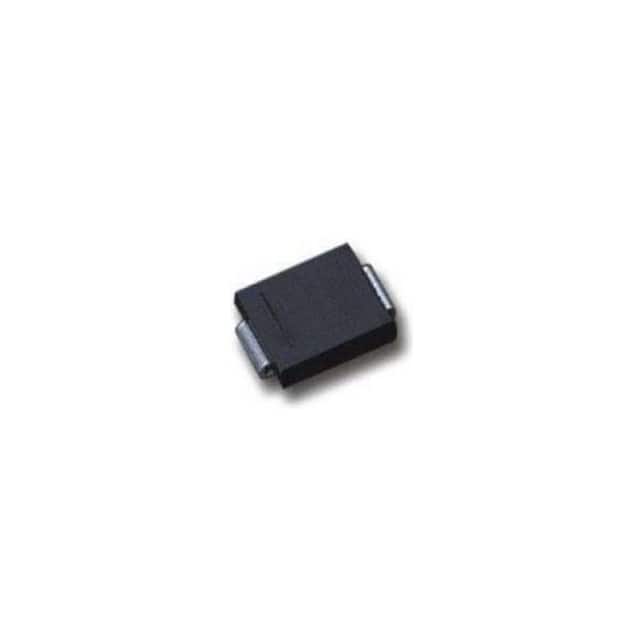

TVS DIODE 64VWM 103VC
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage64 V
Breakdown voltage71.1 V
Clamping voltage103 VMax
Peak pulse power5 kW
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 48.6A |
| Power Line Protection | - |
| Power - Peak Pulse | 5000W (5kW) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 71.1V |
| Voltage - Clamping (Max) @ Ipp | 103V |
| Voltage - Reverse Standoff (Typ) | 64V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C |
| Package | Tape & Reel (TR) |
| Package / Case | DO-214AB (SMC) |
| Supplier Device Package | - |
| Other | |
| Applications | General Purpose |
| Mfr | Meritek |
| Product Status | Active |
| Series | 5.0SMDJ |
| Type | Zener |
