5002C

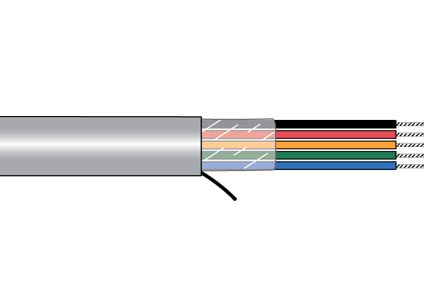

ActiveXtra-Guard-1 22 AWG 2 Conductor Unshielded PVC Cable is a high performance PVC cable for general-purpose applications.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 300 V RMS |
| AC and DC characteristics | |
| 3) Characteristic Impedance | 80 Ω |
| Environment and package | |
| 1) Temperature Range | -35 to 105°C |
| Other | |
| (1) Color Code | Alpha Wire Color Code E |
| 1) Component 1 | 2 X 1 COND |
| 1) UL | a) Component 1 |
| 2) Bend Radius | 10X Cable Diameter |
| 2) Cable Assembly | 2 Components Cabled |
| 2) Capacitance | 22.8 pF/ft @1 kHz, Nominal Conductor to Conductor |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 3) IEC | EN 60332-1 Flame Behavior |
| 3) Pull Tension | 11 Lbs, Maximum |
| 4) Inductance | 0.18 μH/ft, Nominal |
| 4) Other | Oil Resistant |
| 4) Sunlight Resistance | Yes |
| 5) CE | EU Low Voltage Directive 2014/35/EU |
| 5) Conductor DCR | 16.3 Ω/1000ft @20°C, Nominal |
| a) 5000 FT | 18 x 14.25 x 8 Continuous length |
| a) Color(s) | Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White |
| a) Twists | 8.0 Twists/foot (min) |
| AWM/STYLE 2464 | 80°C / 300 V RMS |
| b) 1000 FT | 12 x 5.94 x 5 Continuous length |
| b) Orientation | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| b) Ripcord | 1 End 810 Denier Nylon |
| c) 500 FT | 10.5 x 5 x 3.5 Continuous length |
| c) Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| CM | 105°C |
| Color | BLACK |
| Cond | 1 |
| c) Print | ALPHA WIRE-* P/N 5002C 2C 22 AWG XTRAGUARD(R) 1 (UL) TYPE CM 105C SUN RES OR AWM 2464 80C 300V OR AWM 2517 105C 300V VW-1 --- LLXXXXXX CSA 105C TYPE CMG FT4 CE ROHS OIL RESISTANT (SEQ FOOTAGE) * = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] |
| d) 100 FT | 6.5 x 2 x 1.9 Continuous length |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
